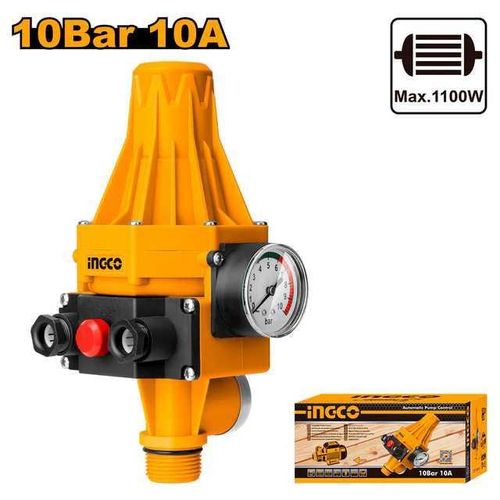

Ingco Automatic pump control 10Bar 1100W

Ingco Automatic Pump Control Switch (WAPS001 / WPC101 series) is an electronic pressure controller designed to automate water pumps up to 1100W (1.5 HP). It starts and stops the pump automatically based on water demand and protects against dry running.

Technical Specifications

• Model Codes: WAPS001 / WPC101

• Rated Voltage / Frequency: 220–240V ~ 50/60Hz

• Maximum Motor Power: 1100 W (1.5 HP)

• Maximum Working Pressure: 10 Bar (145 PSI)

• Starting Pressure Setting: 1.5 Bar (22 PSI)

• Maximum Rated Current: 10 A

• Inlet / Outlet Thread Size: 1″ (25 mm) Male BSP

• Maximum Fluid Temperature: 60°C

• Protection Rating: IP65 (Dust-tight and water-jet protected)

Key Functions & Features

• Automatic Operation: Detects tap opening/closing to automatically turn the water pump ON when pressure drops below 1.5 Bar and OFF when flow stops.

• Dry-Run Protection: Automatically shuts off the pump motor if water supply fails or runs dry, preventing impeller damage and motor burnout.

• LED Status Panel: Features LED indicator lights for Power On, Pump On, and Failure, alongside a manual Restart button.

• Constant Pressure: Replaces traditional pressure tank and pressure switch setups, ensuring steady water flow without rapid pump cycling.
