Ingco DWP37062 4″ Deep well pump 370W(0.5HP)

Ingco DWP37062 is a 4-inch submersible deep well pump powered by a 370W (0.5 HP) 100% copper wire motor, designed for pumping clean groundwater from boreholes, wells, and water storage sumps.

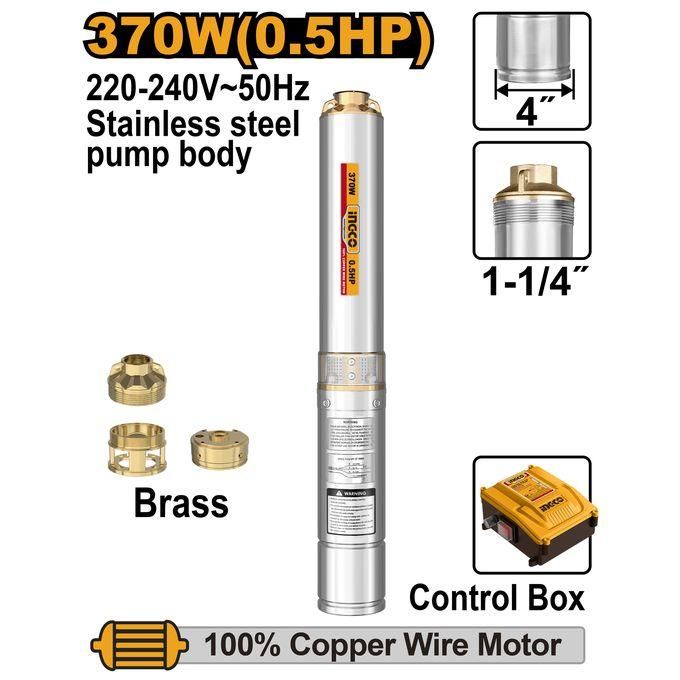

Technical Specifications

• Model Code: DWP37062

• Input Power: 370 W (0.5 HP)

• Voltage / Frequency: 220–240V ~ 50Hz

• Pump Outer Diameter: 4″ (Fits standard 4-inch or larger borehole casings)

• Discharge Outlet Size: 1-1/4″ (1.25 inches) threaded outlet

• Maximum Head (Lift): 36 Meters

• Maximum Flow Rate: 6,000 Liters/hour (100 L/min)

• Motor Winding: 100% Copper Wire Motor

• Pump Body Material: Stainless Steel casing with heavy-duty brass outlet and connection points

• Included Accessories: Wall-mountable external control box with overload protector

Primary Applications & Key Features

• Shallow to Medium Boreholes: Ideal for water wells and boreholes with lifting requirements up to 36 meters.

• Domestic Water Supply: Supplying clean water to single-story homes, elevated water storage tanks, and garden irrigation systems.

• Corrosion-Resistant Construction: Built with a durable stainless steel outer body and brass screw connections to resist underwater wear and corrosion.

• Copper Motor Efficiency: Features a 100% copper wire motor for improved heat resistance and energy efficiency.

• Dedicated Control Box: Includes an external control box with an ON/OFF switch and built-in thermal protection to safeguard the pump against overload.
