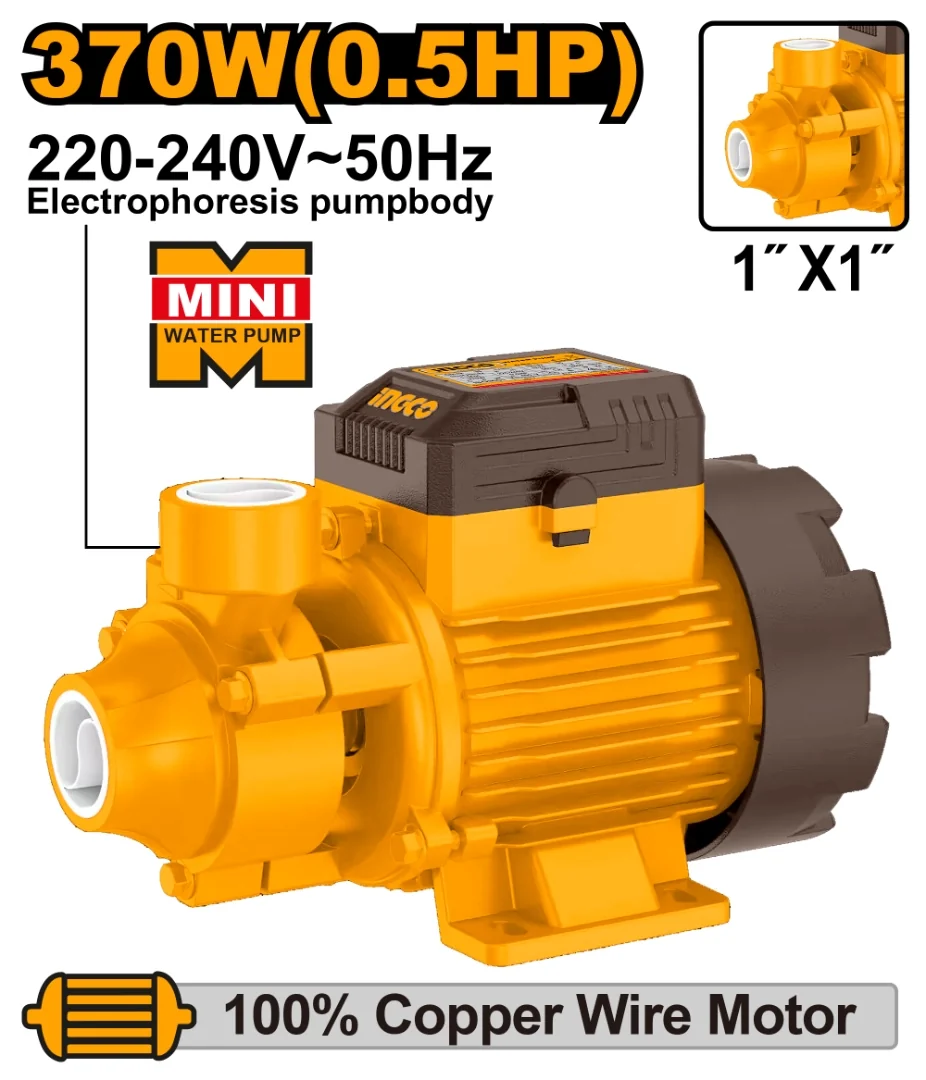

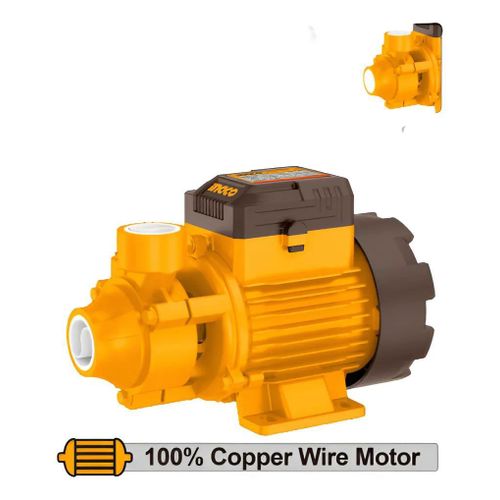

Ingco VPM370268 Water pump 370W(0.5HP) 30M

Ingco VPM370268 is a compact 370W (0.5 HP) peripheral electric clear water pump engineered for continuous clean water transfer, pressure boosting, and domestic water supply systems.

Key Specifications

• Model Number: VPM370268

• Input Power: 370 W (0.5 HP)

• Voltage / Frequency: 220–240 V ~ 50 Hz

• Max Head: 30 m

• Max Flow Rate: 35 L/min ($2.1\text{ m}^3/\text{h}$)

• Max Suction Lift: 8 m

• Inlet / Outlet Diameter: $1″ \times 1″$ ($25\text{ mm}$)

• Motor Winding: 100% Copper wire motor for high thermal efficiency and extended continuous operation

• Impeller Material: High-durability brass peripheral impeller

• Pump Body: Heavy-duty cast iron body with anti-rust treatment

Key Features & Applications

• 100% Copper Motor Construction: Ensures cool running temperature, resistance to insulation breakdown, and longer service life under sustained daily pumping cycle loads.

• Brass Impeller: Corrosion-resistant brass peripheral impeller reduces friction and resists pitting from micro-particulates in clean water supplies.

• High-Head Pressure Output: Capable of pumping clear water up to a 30 m total head, making it effective for multi-story residential water transfer.

• Compact Footprint: Easily mounts inline with automatic pressure controller switches or pressure tanks to form compact booster pump assemblies.

• Primary Uses: Domestic overhead tank filling, pressure boosting for shower/tap networks, garden sprinkler irrigation, well-water draw (within 8 m suction limits), and light commercial water circulation.
