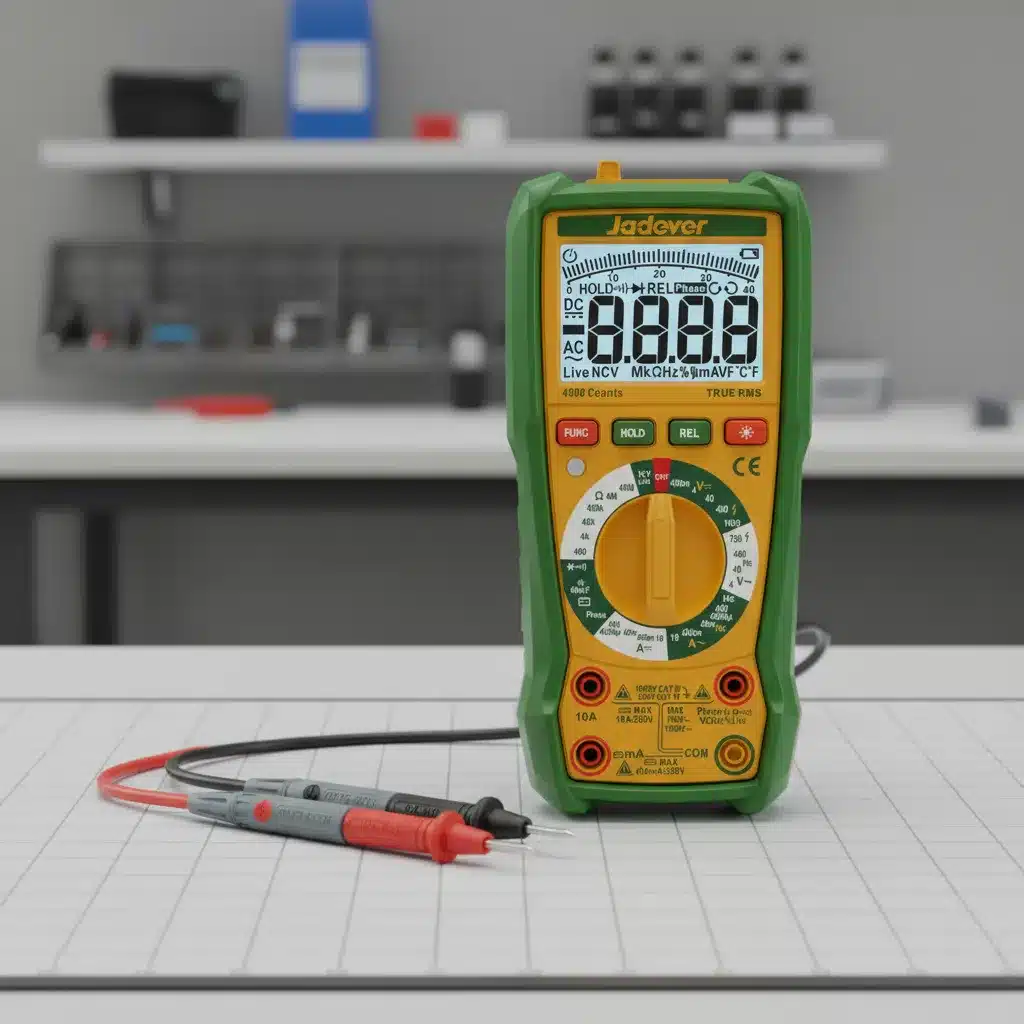

Jadever JDDM2502 Digital multimeter 4000Counts 1000V
KSh4,500.00
Digital
multimeter
Display : 4000 counts true RMS
Phase sequence measurement function
LCD with backlight
DC Voltage: 400mV/4V/40V/400V/1000V
AC Voltage:4V/40V/400V/750V
DC Current: 40μA/40mA/400mA/10A
AC Current: 40mA/400mA/10A
Resistance:400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Capacitance:10nf/100nf/1000nf/10μF/100μF/10
00μF/10mf/100mf
Frequency:10Hz/100Hz/1000Hz/10KHz/100KHz
/1000KHz/10MHzPhase sequence measurement
function
Non-contact voltage detection
live line or neutral Line distinguish
Diode test
Max/Min and Data hold
Low battery indication
Auto power off
With flash light function
With input jack LED indicate
With 2pcs LR6 AA batteries
Packed by color box
Technical Specifications
-
Model Number: JDDM2502
-
Display Profile: 4000 counts True RMS (features a crisp LCD with a built-in backlight)
-
DC Voltage Limits: 400mV to 1000V
-
AC Voltage Limits: 4V to 750V
-
Current Ranges:
-
DC: 40µA, 40mA, 400mA, up to 10A
-
AC: 40mA, 400mA, up to 10A
-
-
Resistance Spectrum: 400Ω all the way up to 40MΩ
-
Capacitance Spectrum: Extensive range from 10nF to 100mF (millifarads)
-
Frequency Spectrum: 10Hz to 10MHz
| Weight | 5 lbs |
|---|
