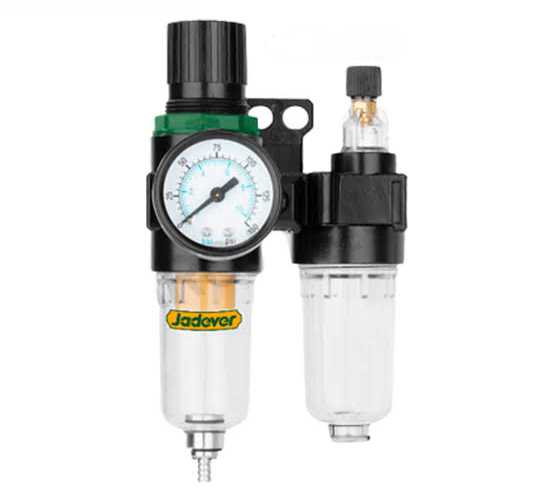

Key Product Highlights
-
Dual-Stage Protection:
-
Stage 1 (Filter & Regulator): Traps water, rust particles, and solid dust down to 40 microns while allowing you to adjust exact air pressure via the locking top knob.
-
Stage 2 (Lubricator): Automatically mixes fine oil mist into the clean, regulated air to continuously lubricate internal motors/vanes of air impact wrenches, drills, and hammers.
-
-
Adjustable Oil Feed: The lubricator bowl features a top sight glass and adjustment screw to dial in oil drop frequency based on tool demand.
-
Metal Protection Guards: Clear polycarbonate bowls are protected by surrounding metal guards to shield against accidental shop impacts.
- Air filtration units
Description
Key Specifications
| Feature | Specification |
| Model | JDFF4504 |
| Port / Connection Size | 1/4″ NPT / PT |
| FRL Configuration | 2-Bowl (Filter/Regulator + Lubricator) |
| Bowl Capacities | 15 cc (Filter Bowl) + 25 cc (Oil Reservoir) |
| Filtration Element | 40 µm (Micron) Fiber Filter |
| Max Operating Pressure | ~10 bar (145 PSI) |
| Adjustable Pressure Range | 0.5 – 8.5 bar (7 – 120 PSI) |
| Included Accessories | Mounting bracket, pressure gauge, oil regulator dial |
Additional information
| Weight | 1 lbs |
|---|
