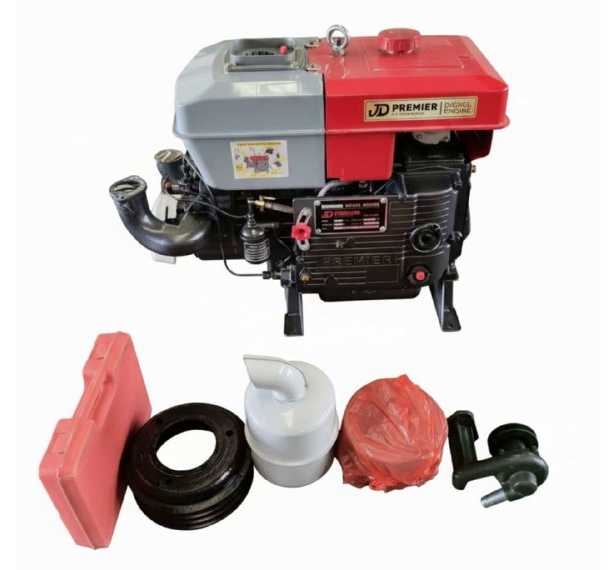

JD Premier ZS1110WP 22HP water-cooled diesel engine.

Key Technical Specifications

• Model Configuration: ZS1110WP (Single-Cylinder, Horizontal, 4-Stroke)

• Power Output: 22 HP (Horsepower) / ~16.2 kW

• Engine Speed: Rated at ~2,200 RPM (low-speed, high-torque architecture)

• Bore × Stroke: 110 mm × 115 mm (giving it massive displacement and compression)

• Cooling System: Water-Cooled (typically uses a large condenser/evaporative hopper system)

• Starting Mechanism: Manual hand-crank (utilizing a decompression lever), though deluxe versions support electric start integration.

• Weight: Approx. 180 to 230 kg (Engine only, owing to the massive cast-iron block and balanced flywheel).

• Fuel Consumption: Very efficient relative to its output, averaging less than 280g/kWh under standard load.diesel engine.
