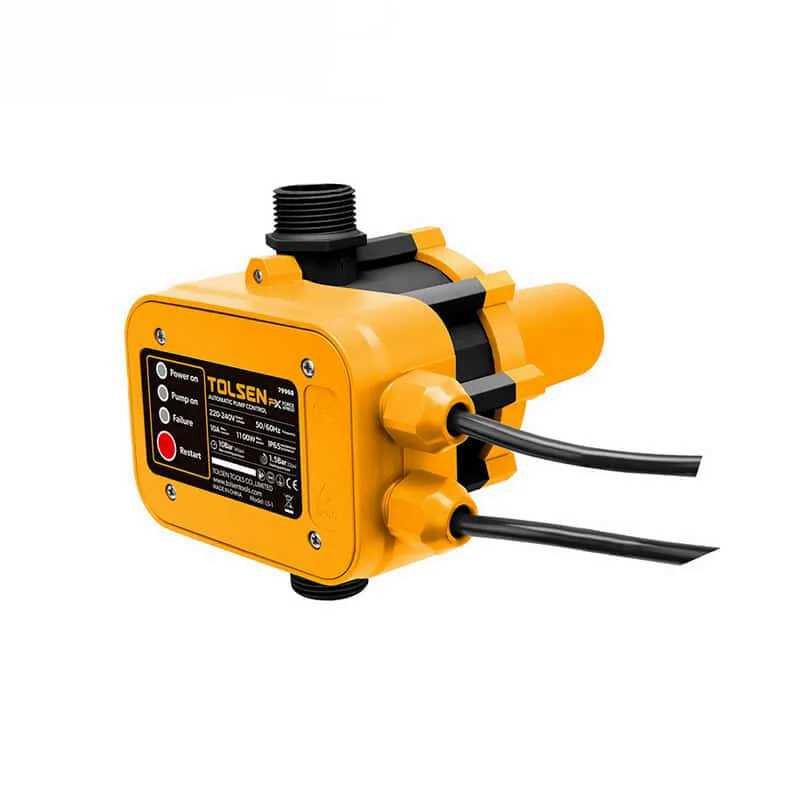

Tolsen 79968 Automatic Pump Control Switch
KSh4,500.00
Main Features & Benefits
-
Automatic Operation: Eliminates the need for traditional pressure tanks and mechanical pressure switches by turning the pump on and off automatically based on water demand.
-
Dry-Run Protection: Automatically shuts down the water pump if water flow is interrupted or empty, protecting internal impellers and motor coils from overheating.
-
Constant Pressure Control: Maintains a steady water flow rate and consistent pressure line without the rapid cycling associated with older pressure switch setups.
-
Manual Reset Function: Features an easy-access manual reset button (
RESET) to restart the pump once the water supply has been restored. -
IP65 Weatherproof Housing: Sealed electronics and water-resistant casing protect internal circuit boards against rain, dust, and damp pump pit conditions.
-
LED Status Indicators: Built-in LED indicator lights signal Power On, Pump Running, and Failure/Failure Mode for quick troubleshooting.
Tolsen 79968 Automatic Pump Control Switch (Electronic Pressure Controller) is an intelligent, automated device designed to regulate and protect electric water pumps in domestic, agricultural, and commercial water supply systems. By monitoring line pressure and flow, it automatically starts the pump when a tap is turned on and stops it when the tap is closed. It also features integrated dry-run protection to prevent motor burnouts when the water supply runs dry.
Key Specifications
| Feature | Specification Details |
| Brand / Series | Tolsen Tools |
| Model / Item Code | 79968 |
| Input Voltage | 220–240V ~ 50/60Hz |
| Max Current | 10A |
| Max Power Rating | 1.1 kW (1.5 HP) |
| Starting Pressure Range | 1.2 Bar to 2.2 Bar (Factory set ~1.5 Bar) |
| Max Working Pressure | 10 Bar (145 PSI) |
| Connection Thread / Inlet-Outlet | 1″ Male Thread (G1″) |
| Protection Degree | IP65 (Dust-tight & Water Jet Resistant) |
| Max Liquid Temperature | 60°C |
| Certifications | CE Approved |
| Packaging | Color display box |
