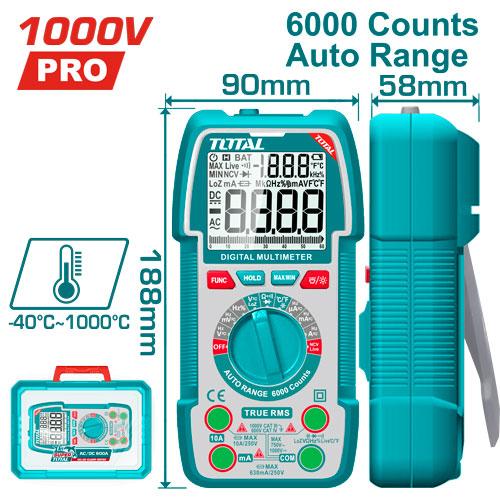

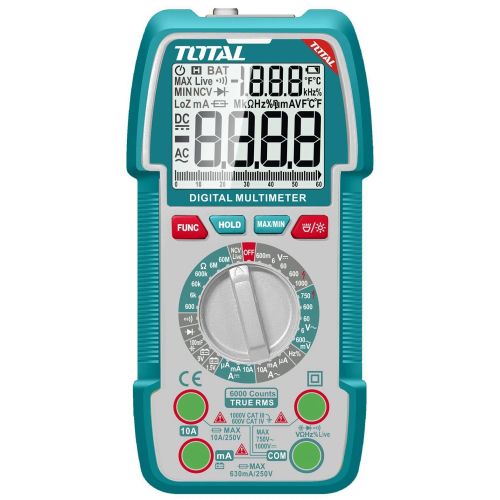

Total Digital multimeter 1000V 6000 counts

Full Measurement Profiles

This meter features dedicated input jacks with smart LED indicator lights that guide you on where to plug your test leads based on the dial selection:

• DC Voltage: 600mV up to 1000V

• AC Voltage: 600mV up to 750V

• DC/AC Current: 6000µA / 60mA / 600mA up to 10A

• Resistance: 600Ω up to 60MΩ

• Capacitance: 10nF all the way up to 100mF (highly useful for testing large motor-start capacitors)

• Frequency / Duty Cycle: 10Hz to 10MHz / 1% to 95%

• Temperature Range: $-40.0^\circ\text{C}$ to $1000.0^\circ\text{C}$ (includes an external thermocouple wire link)
