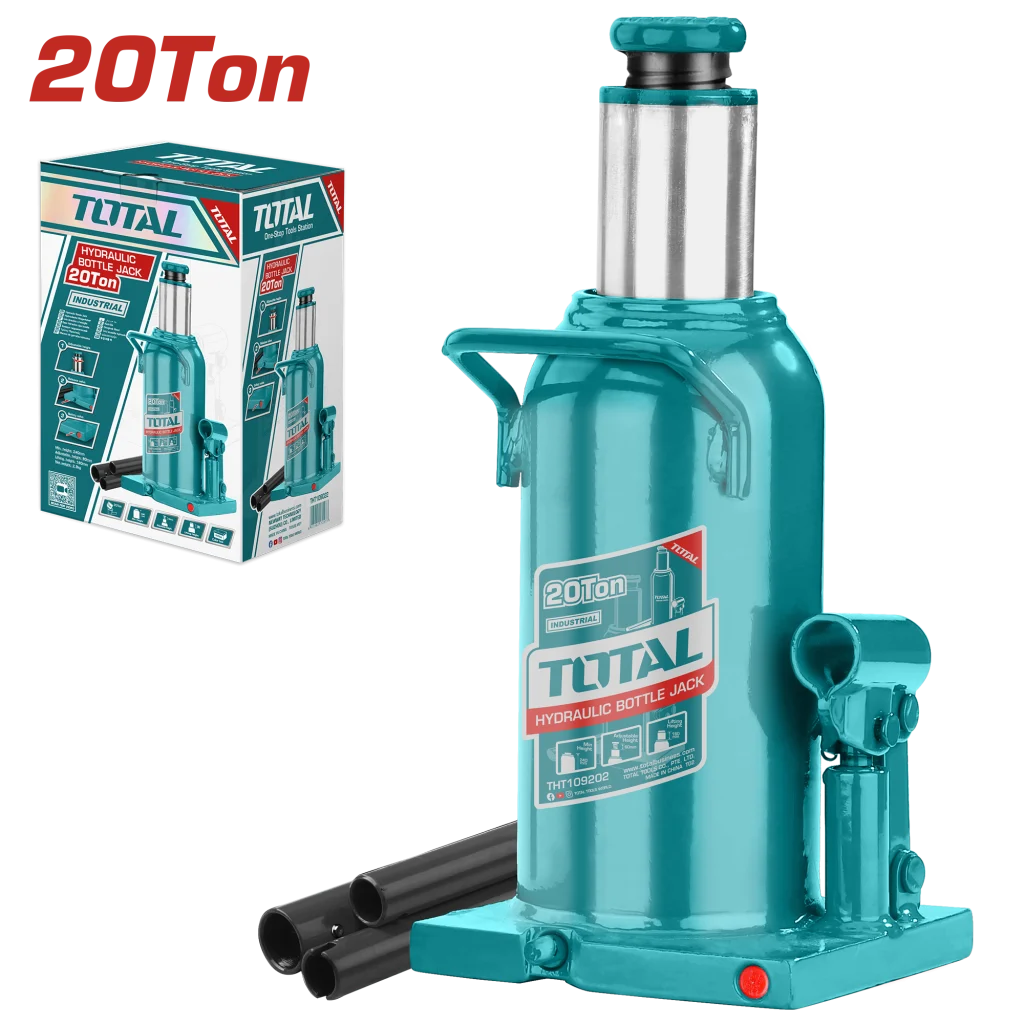

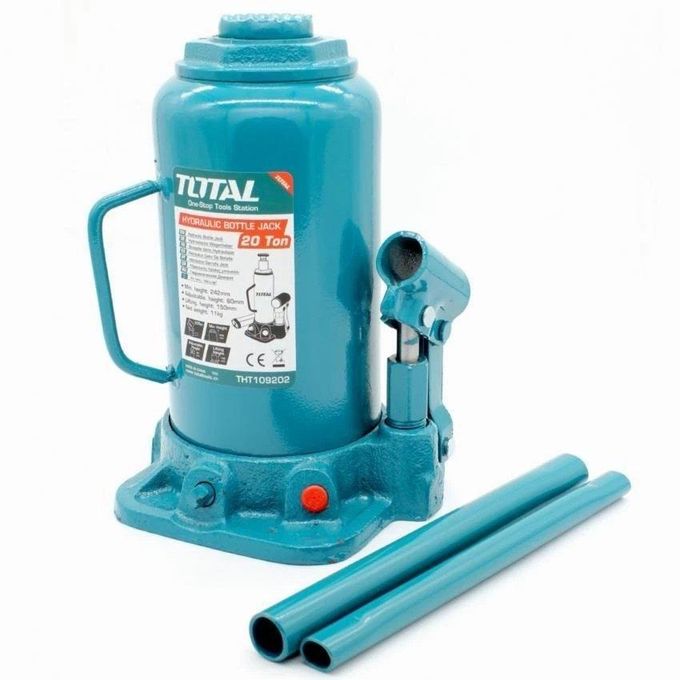

Total THT109202 Hydraulic bottle jack 20Ton With safety valve
KSh10,500.00
Key Features
-
Built-in Safety Overload Valve: Integrated bypass mechanism ensures protection against load-exceeding operation up to the full 20-ton capacity.
-
Integrated Carrying Handle: Includes a built-in heavy-duty steel carrying handle for easier transport around workshops and jobsites.
-
Heat-Treated Saddle & Extension Screw: Allows precision positioning against chassis frame rails before hydraulic pressure is engaged.
-
Reinforced Industrial Base Plate: Extra-wide forged steel base distributes high tonnage safely across hard floors or steel plates.
Total THT109202 is an extra heavy-duty 20-ton (20,000 kg) hydraulic bottle jack designed for commercial vehicle repair, heavy freight trucks, trailers, buses, construction machinery, and industrial lifting applications.
Technical Specifications
| Feature | Specification |
| Model Number | THT109202 |
| Lifting Capacity | 20 Ton (20,000 kg) |
| Minimum Height | 242 mm (24.2 cm) |
| Maximum Height | 452 mm (45.2 cm) |
| Lifting Travel | 210 mm |
| Net Weight | ~11.0 kg |
| Safety Feature | Built-in Safety Overload Valve |
| Packaging | Color Box |
