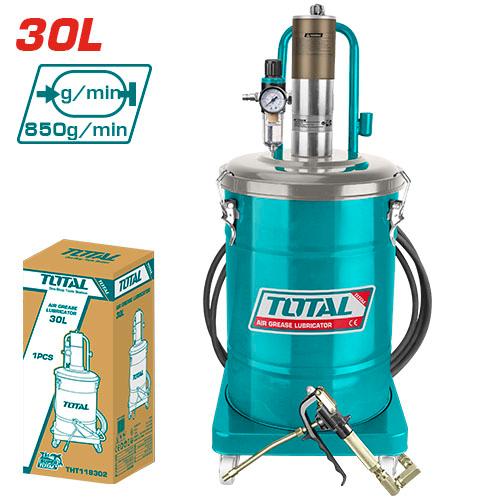

Total THT118302 Air grease lubricator 30L
KSh25,999.00
Key Features & Components
-
High-Pressure Ratio (50:1): Easily pushes heavy NLGI #1 and #2 grease through clogged zerk fittings and long hose lengths.
-
Integrated Air Regulator & Filter: Equipped with an air regulator and moisture filter to regulate incoming air pressure and protect the pneumatic motor from line condensate.
-
Wheeled Reservoir Tank: Heavy-duty steel reservoir fitted with caster wheels and a sturdy push handle for easy maneuverability across shop floors.
-
High-Pressure Gun Assembly: Includes a 360-degree swivel grease gun with control handle and 5-meter steel-braided hose to easily reach elevated or awkward grease points.
-
Pressure Plate & Spring: Keeps grease compressed at the base of the suction tube to eliminate air pockets and ensure continuous suction.
Total THT118302 Air Grease Lubricator (30L) is a mobile, pneumatic-powered grease dispenser designed for high-volume lubrication in automotive garages, fleet maintenance depots, agricultural equipment service yards, and industrial workshops.
Technical Specifications
-
Tank Capacity: 30 Liters
-
Pressure Ratio: 50:1 (Output fluid pressure is 50x input air pressure)
-
Working Air Pressure: 6 – 8 bar (87 – 116 PSI)
-
Max Fluid Output Pressure: 400 bar (5,800 PSI)
-
Max Delivery / Flow Rate: 850 g/min
-
Air Consumption: 250 L/min @ 6.2 bar
-
Air Cylinder Diameter: 70 mm
-
Air Inlet Fitting: 1/4″ NPT / Quick Coupler
-
High-Pressure Grease Hose: 5 meters (16.4 ft)
-
Gross / Net Weight: ~15–16 kg
| Weight | 5 lbs |
|---|
