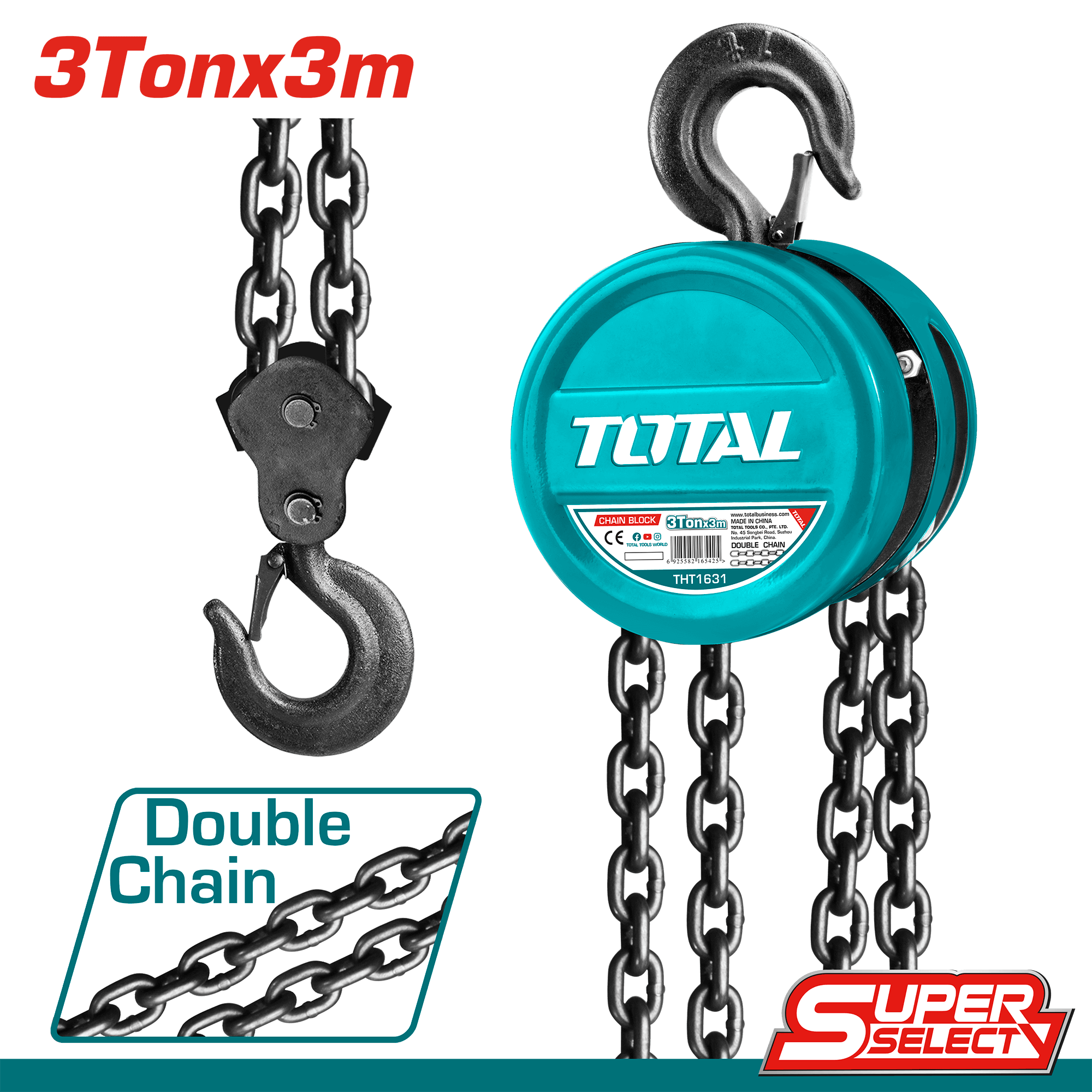

Total THT1631 Chain block 3 ton 3M
KSh23,500.00
Chain block
Rating lift weight:3Ton
Lift height:3m
Number of load chain:2
Hook to hook distance:300 mm
Chainpull to lift full load:404N
Net weight:21.5kg
Packed by wooden case
Total THT1631 is a heavy-duty manual 3-ton (3,000 kg) chain block (hand chain hoist) featuring a standard 3-meter lifting height, engineered for demanding lifting operations in industrial plants, auto repair shops, construction sites, and equipment maintenance facilities.
Technical Specifications
| Feature | Specification |
| Model Number | THT1631 |
| Lifting Capacity | 3 Ton (3,000 kg) |
| Lifting Height | 3 Meters (9.8 feet) |
| Number of Load Chain Columns | 2 (Double Chain / 2 Falls) |
| Load Chain Diameter | 8 mm |
| Net Weight | ~22.0 kg |
| Brake System | Mechanical Load Brake |
| Packaging | Wooden Case / Heavy Duty Carton |
Key Features
-
Heavy-Duty Double Load Chain System: Employs twin 8 mm alloy steel load chains to balance heavy 3-ton loads smooth and reliably under manual pull strength.
-
Mechanical Brake Mechanism: Automatic pawl load brake securely holds the heavy load at any intermediate height when pulling stops.
-
Drop-Forged 360° Swivel Hooks: Top mounting hook and lower load hook are heat-treated with 360-degree rotation and spring-loaded safety latches.
-
Enclosed Steel Gear Housing: Protects internal heat-treated reduction spur gears from dirt, grime, moisture, and jobsite impacts.
-
High Mechanical Advantage: Precision gear ratio allows smooth operation with minimal operator pull effort required.
