Total THT1651 Chain block 5 Ton by 3M
KSh26,500.00
Key Applications & Features
-
High-Capacity Lifting: Engineered to lift up to 5,000 kg with minimal manual pull effort thanks to optimized gear reduction ratios.
-
Double-Pawl Mechanical Brake: Equipped with a dual-pawl braking system that locks instantly when pull tension stops, preventing slippage or uncontrolled descent of heavy loads.
-
360° Swivel Hooks: Both the top mounting hook and bottom load hook rotate 360 degrees and feature heavy-duty spring-loaded safety latches to prevent rigging slips.
-
Industrial Durability: Enclosed steel gear casing protects internal spur gears and brake components from job site dust, debris, and weather exposure.

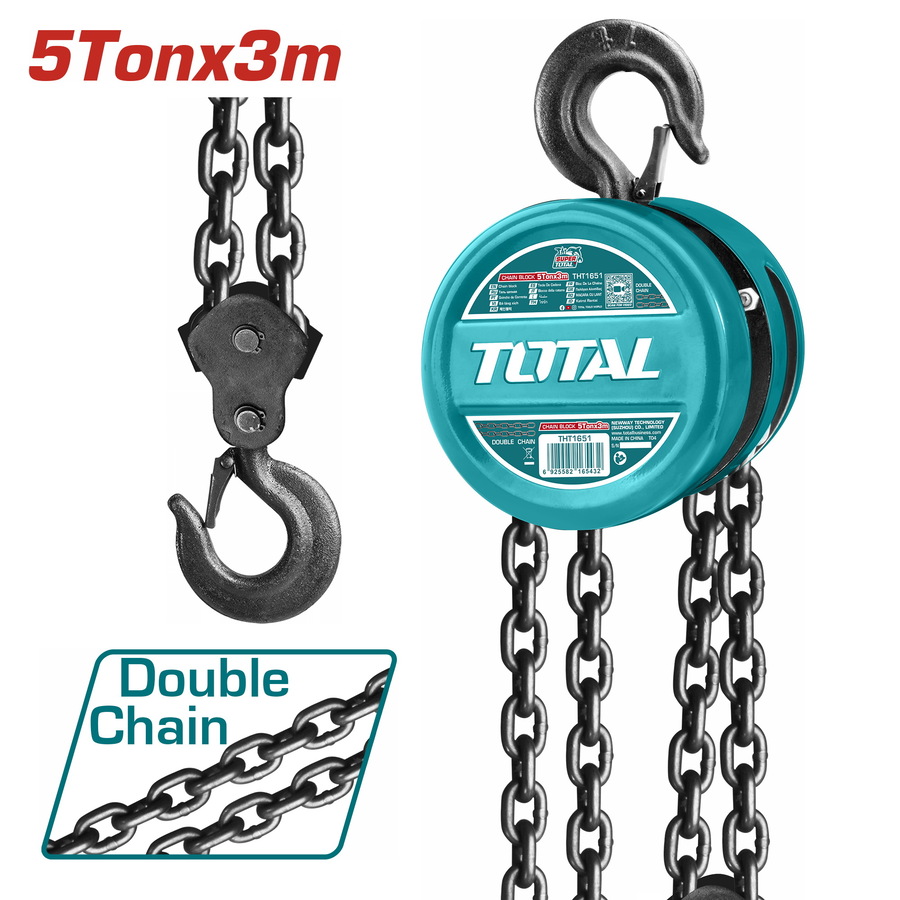

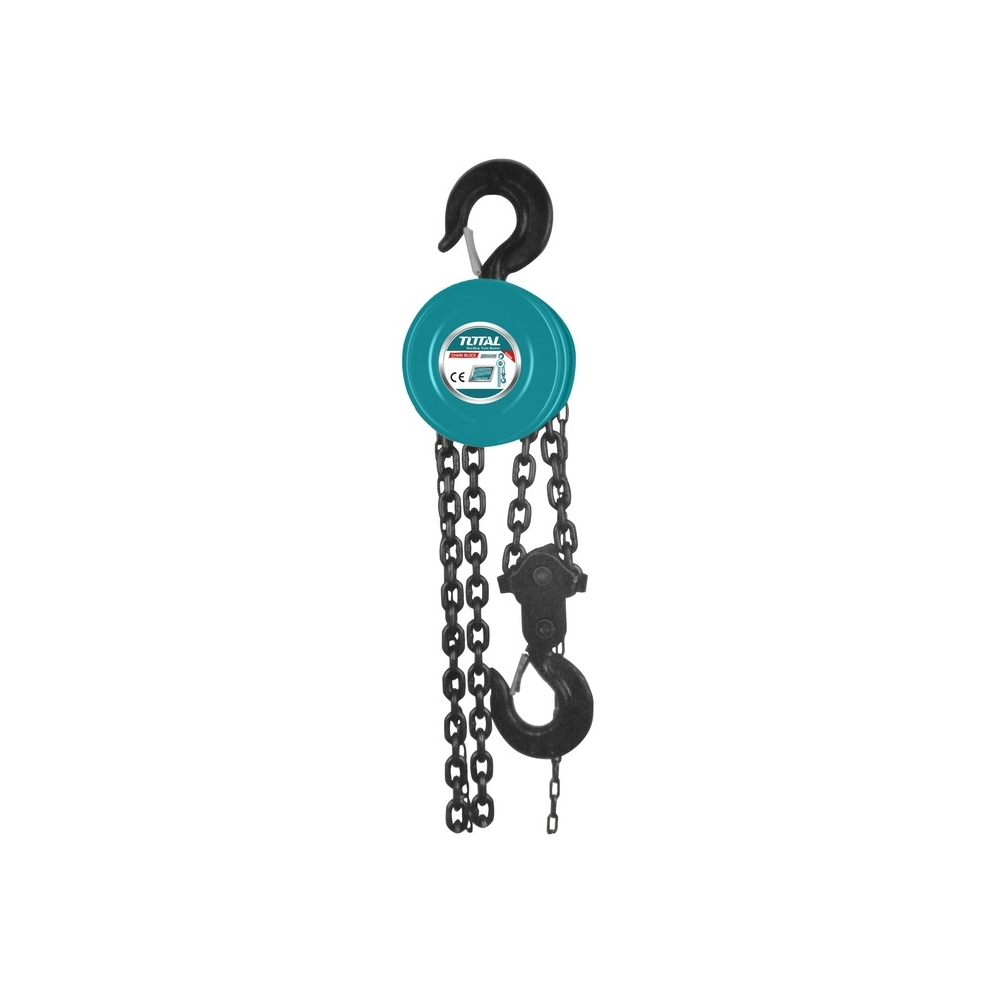

TOTAL THT1651 is a heavy-duty 5-ton industrial chain block (manual chain hoist) designed for high-capacity vertical lifting, rigging, and heavy machinery positioning in construction, workshops, and industrial sites.
Technical Specifications
-
Model Code: THT1651
-
Lifting Capacity: 5 Ton (5,000 kg)
-
Standard Lift Height: 3 meters
-
Number of Load Chain Falls (Strands): 2 strands (or 4 strands depending on production series, typically double-fall heavy-duty load chain)
-
Load Chain Diameter: 10 mm
-
Net Weight: ~38 kg – 40 kg
-
Construction: Drop-forged steel alloy hooks with safety latches and heavy-duty steel housing
-
Mechanism: Heat-treated double-pawl Weston-style mechanical brake system
-
Packaging: Wooden box or heavy-duty reinforced carton
| Weight | 5 lbs |
|---|
