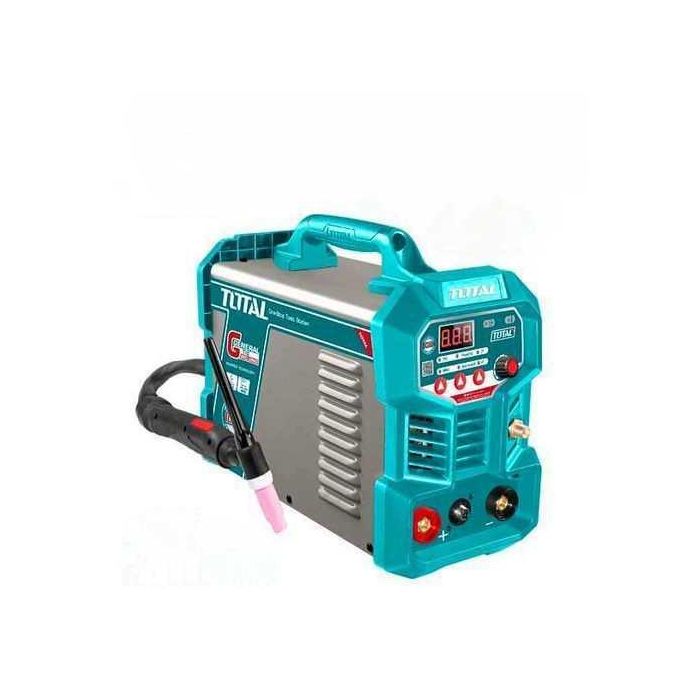

Total TIG20058 Inverter TIG/MMA welding machine 200A
KSh40,500.00
Key Features
-
Pulse & Spot Welding Functions: Features built-in pulse mode to minimize heat distortion when working on thin metal sheets, plus a spot mode for rapid, uniform tack welding.
-
High Output Range (Up to 200A): Delivers extra power headroom for deeper joint penetration in TIG mode while maintaining a 160A maximum for Stick welding.
-
High Open-Circuit Voltage (87.4V TIG): Ensures fast, reliable, and smooth arc initiation.
-
Digital LCD Parameter Control: Allows accurate monitoring and fine-tuning of output parameters during operation.
TOTAL TIG20058 is a 200A dual-process inverter welding machine designed for precision TIG (Tungsten Inert Gas) welding as well as standard MMA (Stick) welding. Featuring a higher current limit than the 160A version, an LCD display, and integrated pulse/spot capabilities, it gives welders fine control over heat input and weld appearance on stainless steel, mild steel, and other ferrous metals.
Technical Specifications
| Specification | Details |
| Model | Total TIG20058 |
| Processes | TIG & MMA (Stick) |
| Input Voltage | 1-Phase, 220–240V ~ 50/60Hz |
| TIG Output Current | 15A – 200A |
| MMA Output Current | 15A – 160A |
| Duty Cycle | 40% @ 200A |
| No-Load Voltage | 87.4V (TIG) / 72.5V (MMA) |
| MMA Electrode Diameter | 1.6 mm – 4.0 mm |
| Tungsten Needle Size | Φ1.6 mm / Φ3.2 mm |
| Display | Digital LCD Current & Settings Readout |
| Weight | 5 lbs |
|---|
