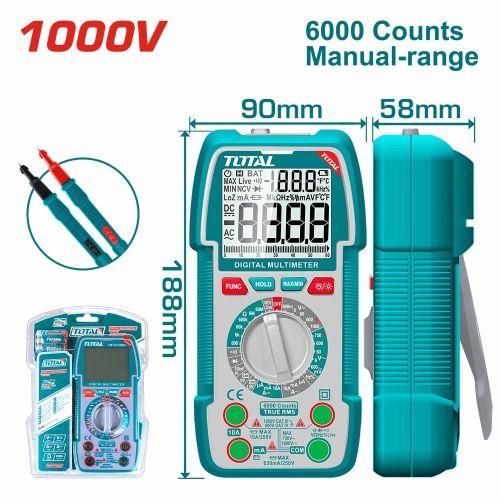

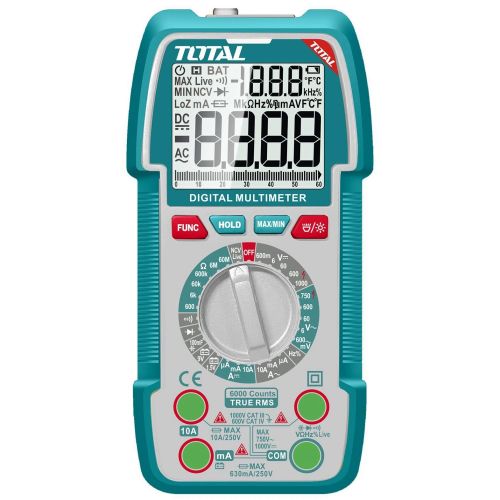

Total TMT5310002 Digital multimeter 1000V 6000 counts

TOTAL TMT5310002 is a professional 6000-count True RMS digital multimeter engineered for precise electrical testing, high-voltage diagnostics, and HVAC/electronic troubleshooting.

Key Measurement Ranges

• DC Voltage: 600mV / 6V / 60V / 600V / 1000V

• AC Voltage: 600mV / 6V / 60V / 600V / 750V (True RMS)

• AC/DC Current: 600µA / 6mA / 60mA / 600mA / 10A

• Resistance: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ

• Capacitance: 10nF / 100nF / 1000nF / 10µF / 1000µF / 10mF / 100mF

• Frequency: 10 Hz to 10 MHz

• Duty Cycle: 1% to 95%

Key Features & Functions

• Display: 6000-count True RMS LCD for precise AC measurement on non-linear loads

• Safety & Testing: Non-Contact Voltage (NCV) detection and live wire vs. neutral line identification

• Advanced Modes: Min/Max recording, Data Hold, and Diode/Continuity testing

• Workplace Utility: Integrated flashlight and backlit display for low-light environments

• Power Supply: 3 × AAA (LR03) batteries
