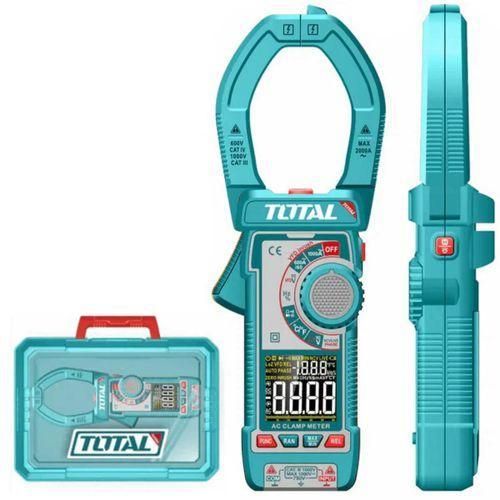

Total TMT7610001 Digital AC clamp meter 1200A 6000Counts
KSh7,999.00
Advanced Diagnostic Functions
-
High-Capacity AC Clamp: Measures high-amperage lines up to 1200A AC non-intrusively without breaking the circuit.
-
Inrush Current Measurement: Captures spike starting current when electric motors, compressors, and heavy machinery power on.
-
LPF (Low Pass Filter / VFD Mode): Filters out high-frequency noise and variable frequency drive (VFD) interference for accurate motor control readings.
-
LowZ (Low Impedance Voltage Mode): Eliminates “ghost voltage” readings caused by capacitive coupling in parallel wiring.
-
Phase Sequence Function: Helps identify 3-phase power rotation to ensure proper motor wiring direction.
TOTAL TMT7610001 is an industrial-grade digital AC clamp meter engineered for heavy-duty electrical testing, diagnostic work, and motor measurements. Equipped with a high-contrast VA color display and a 6000-count True RMS (TRMS) chip, it delivers precise readings on both standard and non-linear electrical loads.
Technical Specifications
| Feature | Specification |
| Model | TMT7610001 |
| Display | 6000 Counts True RMS with VA Color Screen |
| AC Current Range | 60A / 600A / 1200A |
| DC Voltage Range | 600 mV / 6 V / 60 V / 600 V / 1000 V |
| AC Voltage Range | 600 mV / 6 V / 60 V / 600 V / 750 V |
| Resistance Range | 600 Ω up to 60 MΩ |
| Capacitance Range | 60.00 nF up to 60.00 mF |
| Frequency Range | 10 Hz to 10 MHz |
| Temperature Range | -40.0°C to +1000.0°C (-40.0°F to +1832.0°F) |
| Power Source | 3 × AAA (LR03) 1.5V batteries |
| Weight | 5 lbs |
|---|
