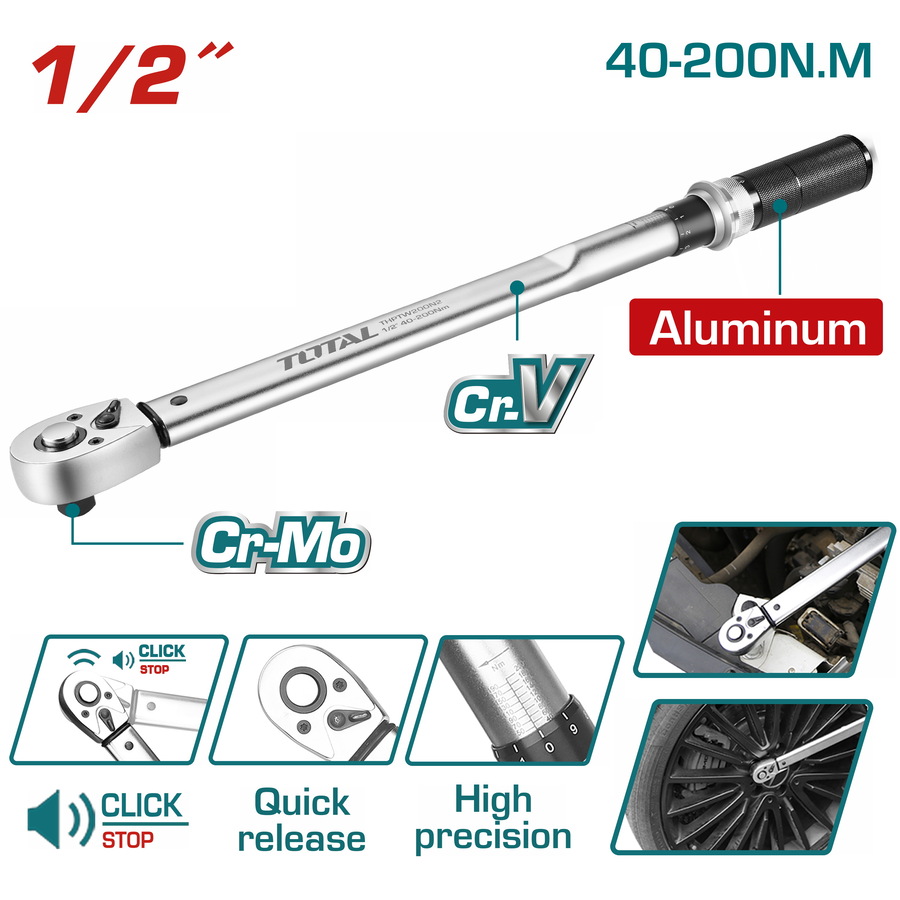

Total Torque wrench Size: 1/2″ Length: 500mm

Key Specifications

• Drive Size: 1/2″ (Standard square drive for heavy-duty sockets)

• Torque Range: 40 – 200 Nm (Newton-meters) / 29.5 – 147.5 lb-ft (Foot-pounds)

• Overall Length: 500 mm (Provides excellent leverage, reducing the physical effort needed to reach high torque values)

• Accuracy: $\pm 4\%$ (Meets standard industrial tolerance for precision fastening)

• Material: Heavy-duty Chrome Vanadium (Cr-V) steel with a smooth, corrosion-resistant finish

Key Features

• Micrometer Adjustment Scale: The torque value is adjusted by pulling down the locking ring and rotating the handle. The laser-etched scale on the shaft provides clear readings in both Nm and lb-ft.

• Positive Lock Mechanism: Once you dial in your desired torque setting, the spring-loaded locking collar snaps back into place to prevent the handle from accidentally turning while you work.

• Reversible Ratchet Head: Features a quick-release button and a flip lever for direction changes. Note: Torque measurement typically functions in the clockwise direction only.

• Audible “Click” Alert: When the preset torque value is reached, the internal mechanism deflects, producing a distinct physical click sound and impulse through the handle, signaling you to stop pulling immediately.
