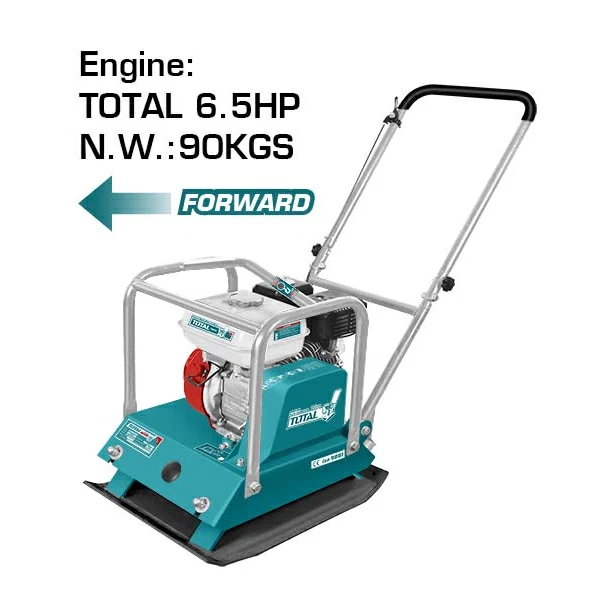

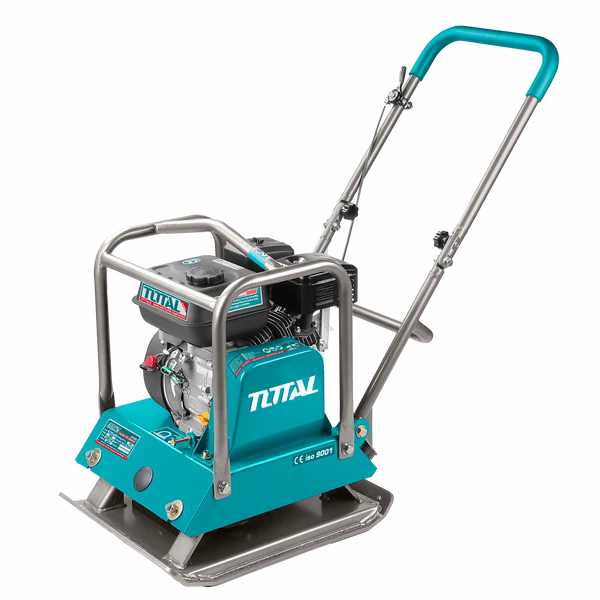

Total TP7100-2 Gasoline plate compactor 4.8Kw(6.5HP) 90Kg
KSh79,999.00
Key Features & Build
-
High Compaction Impact: Delivers 15.0 kN of centrifugal force for deep soil compaction and structural stability.
-
Heavy-Duty Base Plate: Constructed with an open, self-cleaning, high-strength steel plate with curved edges to prevent gouging on asphalt or soil surfaces.
-
Vibration Isolation: Mounted with heavy-duty shock absorbers that isolate engine vibration from the upper frame and operator handle, reducing fatigue.
-
Central Roll Cage: Protective steel frame surrounds the engine block to guard against site impacts and provides a central lifting point for cranes or hoists.
-
Foldable Handle & Transportation: Ergonomic handle folds down for compact transport in vehicle trunks or site storage.
TOTAL TP7100-2 Gasoline Plate Compactor is a heavy-duty construction machine designed to compact soil, gravel, sand, asphalt, and paving blocks. Powered by a 6.5 HP four-stroke petrol engine, its 90 kg working weight generates high centrifugal force to eliminate air voids and create dense, level sub-bases for foundations, driveways, and road repair.
Technical Specifications
| Specification | Details |
| Model | TP7100-2 |
| Engine Type | TOTAL 4-stroke overhead valve (OHV) gasoline engine |
| Power Output | 4.8 kW (6.5 HP) |
| Operating Weight | 90 kg |
| Centrifugal Force | 15.0 kN |
| Vibration Frequency | 4200 vpm (vibrations per minute) |
| Compaction Depth | Up to 30 cm (12 inches) |
| Travel Speed | 45 cm/s (Forward movement) |
| Plate Size | 50 cm x 45 cm |
| Efficiency | ~660 m²/h |
| Weight | 10 lbs |
|---|
