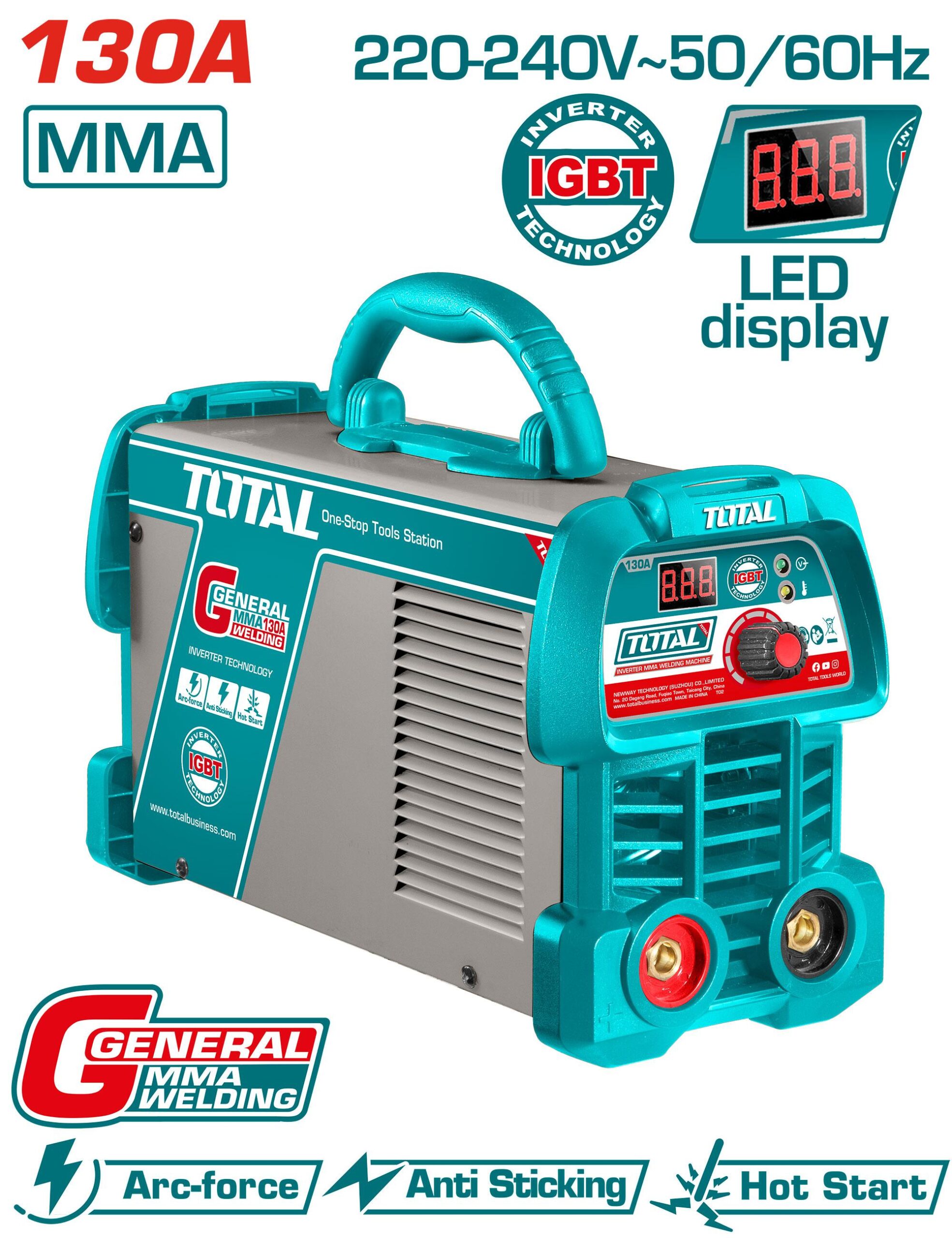

Total TW213059 Inverter MMA welding machine 130A
KSh11,999.00
Inverter MMA welding
machine
IGBT inverter technology
Input voltage: 1~220-240V
Frequency: 50/60Hz
Output current: 15-130A
Duty cycle:130A@45%
LED display
No-load voltage: 75V
Max.output current: 130A
Diameter of electrode: 1.6-3.2mm
Anti-stick/Hot start/Arc-force
1 Pcs electrode holder with cable
Total TW213059 is a compact, portable 130A Inverter MMA (Stick) Welding Machine built on modern IGBT technology. It is tailored for light-to-medium metal fabrication, home repairs, and field maintenance using standard 220–240V single-phase power.
Technical Specifications
| Feature | Specification |
| Model | TW213059 |
| Technology | Advanced IGBT Inverter |
| Input Voltage | 220–240V ~ 50/60Hz (Single Phase) |
| Output Current Range | 15 A – 130 A |
| Duty Cycle | 45% @ 130A |
| No-Load Voltage | 75 V |
| Usable Electrode Size | $1.6\text{ mm}$ – $3.2\text{ mm}$ |
| Display | Digital LED Display |
Built-In Features & Assist Technologies
-
Hot Start: Temporarily increases current at the start to ensure smooth arc striking without sticking.
-
Arc Force: Automatically adjusts amperage to maintain arc stability and proper weld penetration when the arc length fluctuates.
-
Anti-Stick: Prevents the electrode from scorching or freezing to the workpiece by cutting power immediately if a short occurs.
-
Thermal Protection: Shuts off output automatically to prevent overheating during high-duty use.
| Weight | 10 lbs |
|---|
