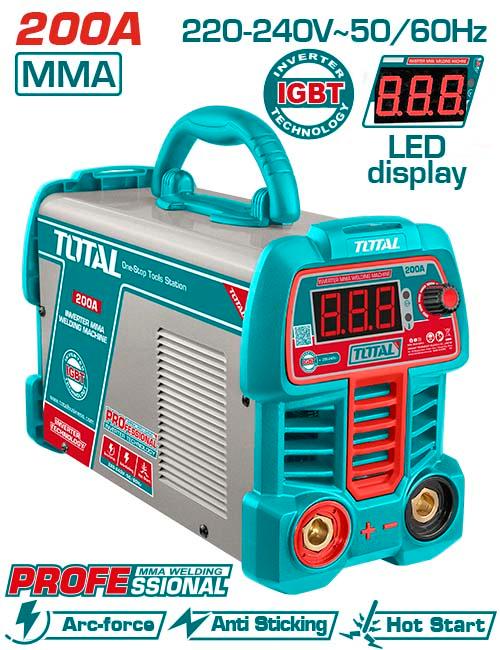

Total TW220069 Inverter MMA welding machine 200A
KSh20,500.00
Key Features
-
IGBT Inverter Circuitry: Delivers better power efficiency, smoother arc control, and reduced weight compared to traditional transformer-based welders.
-
Built-in Arc Assistance:
-
Hot Start: Boosts starting current to prevent the electrode from sticking during initial arc ignition.
-
Arc Force: Adjusts peak current dynamically to keep the arc stable during short-arc welding.
-
Anti-Stick: Automatically cuts current if the electrode fuses to the workpiece, allowing easy release without damaging the tip.
-
-
Thermal Protection: Includes fan cooling and thermal overload sensors to prevent damage from continuous high-duty cycles.
TOTAL TW220069 is a 200A MMA (Manual Metal Arc / Stick) inverter welding machine designed for medium-to-heavy metal fabrication, repair, and site work. Powered by IGBT inverter technology, it provides efficient power output with stable arc performance while maintaining a relatively compact form factor.
Technical Specifications
| Specification | Details |
| Model | Total TW220069 |
| Technology | IGBT Inverter |
| Input Voltage | 1-Phase, 220–240V ~ 50/60Hz |
| Output Current Range | 15A – 200A |
| Duty Cycle | 60% @ 200A |
| No-Load Voltage | 79V |
| Electrode Diameter | 1.6 mm – 4.0 mm |
| Display | Digital LED Current Readout |
| Weight | 5 lbs |
|---|
