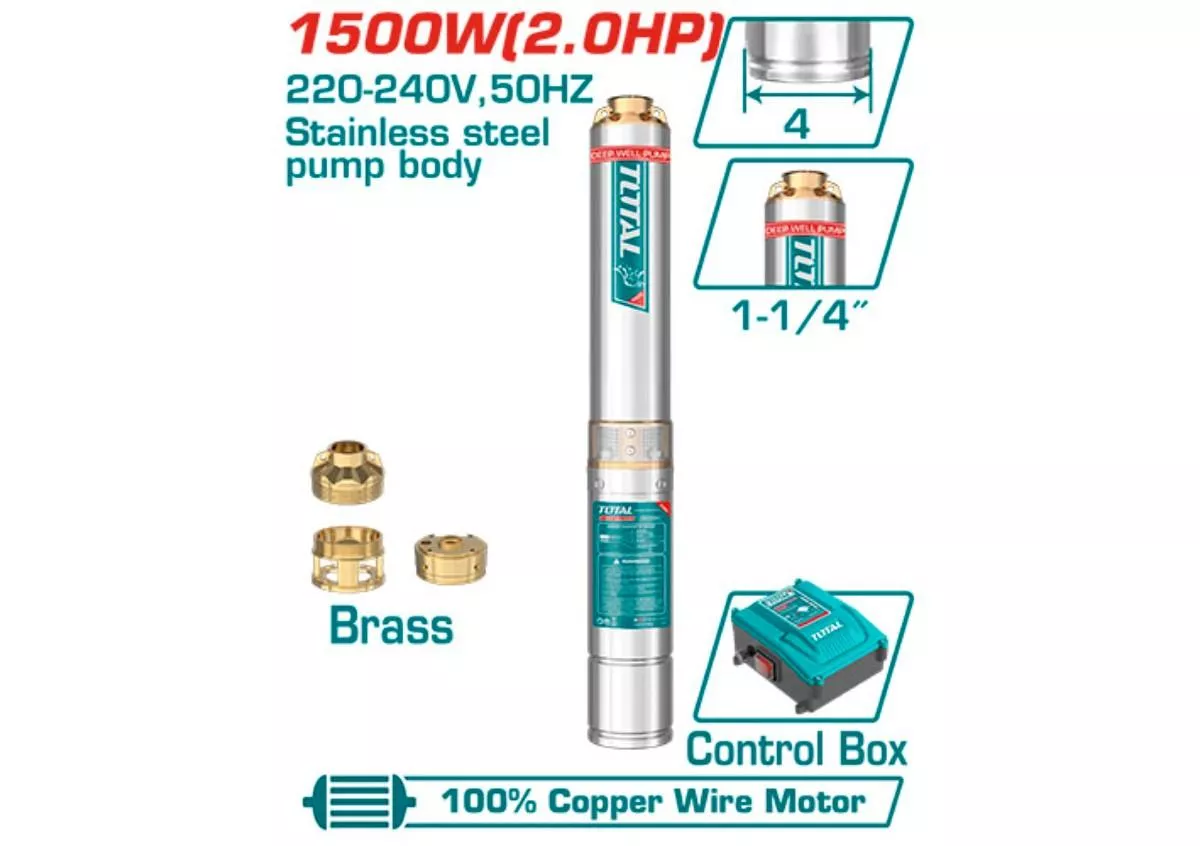

Total TWP515006 4″ Deep well pump 1500W(2.0HP) 135m
KSh37,500.00
Key Features & Construction
-
Ultra-High Vertical Head: Generates up to 135 meters of total head lift, supplying consistent water pressure even from extra-deep water tables or high elevation rises.
-
Heavy-Duty Brass Connections: Equipped with solid brass inlet/outlet ports and a reinforced brass oil chamber casing to withstand intense hydrostatic pressures at deep submersions.
-
100% Copper Motor: Premium oil-filled, copper-wound motor ensures maximal electrical efficiency and effective thermal dissipation under continuous duty cycles.
-
Dedicated Control Box: Comes complete with a wall-mountable starter control box containing a high-capacity capacitor, reset button, thermal overload switch, and manual power controller.
-
Stainless Steel Mesh Strainer: Integrated mid-body intake filter prevents medium-to-large debris from damaging internal impellers.
TOTAL TWP515006 4″ Submersible Deep Well Pump is a top-tier, commercial-grade borehole pump engineered for extra-deep water extraction and long-distance vertical pumping. Driven by a high-torque 2.0 HP motor, it delivers an impressive maximum head of 135 meters, making it an excellent choice for deep boreholes, multi-story water storage distribution, and large-scale agricultural or commercial water systems.
Technical Specifications
| Specification | Details |
| Model | TWP515006 |
| Input Power | 1500W (2.0 HP) |
| Voltage / Frequency | 220V–240V ~ 50Hz |
| Maximum Head | 135 meters |
| Maximum Flow Rate | 6.7 m³/h (111.6 L/min) |
| Pump Outer Diameter | 4″ (Fits standard 4-inch or larger boreholes) |
| Discharge Outlet | 1.25″ (G1-1/4) threaded discharge |
| Impeller System | Multi-stage high-head floating impellers |
| Motor & Component Build | 100% Copper wire motor; heavy-duty brass inlet, outlet, and oil chamber |
| Body Construction | Industrial-grade stainless steel pump casing |
| Included Accessories | Dedicated starter control box & power cable |
| Weight | 5 lbs |
|---|
