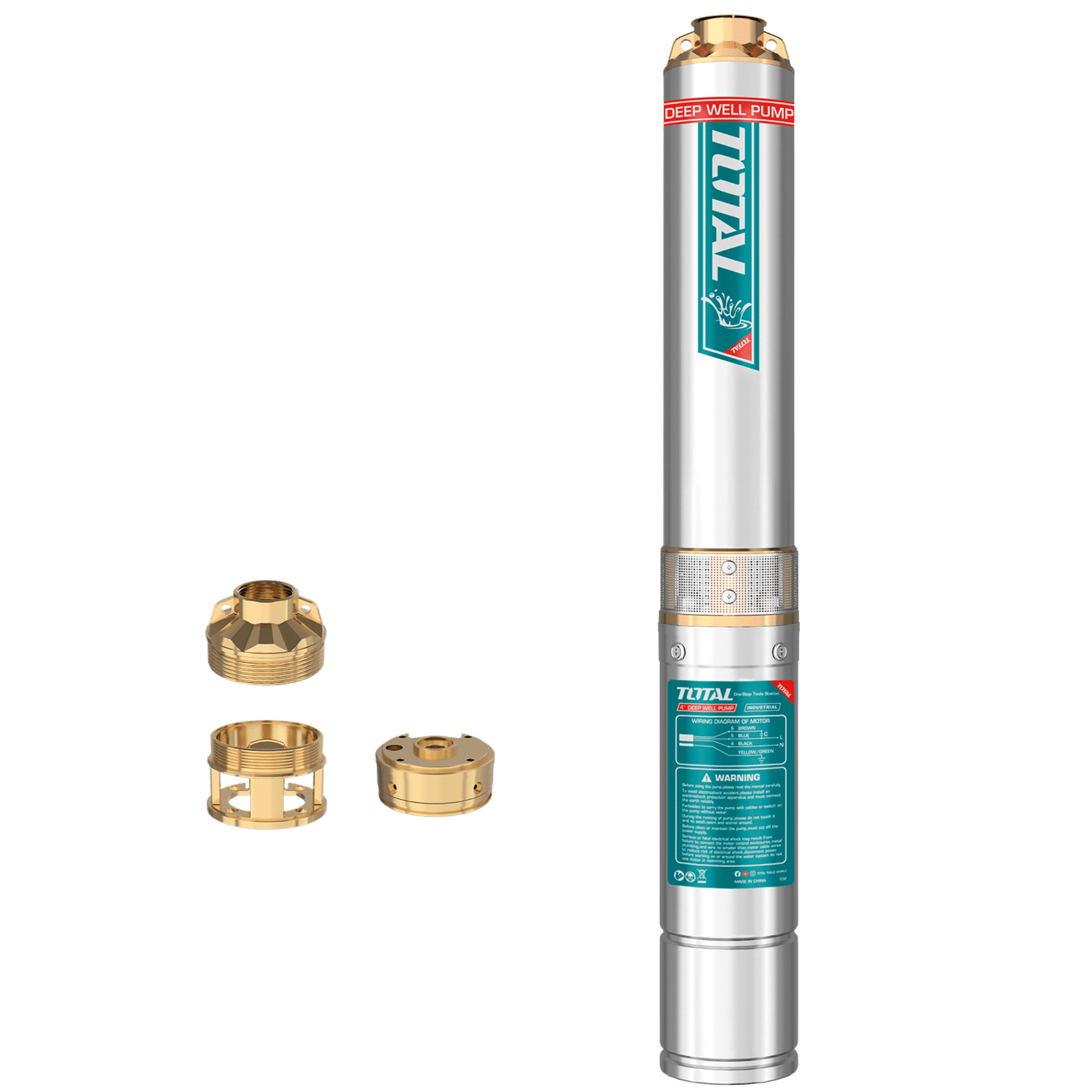

Total TWP53706 4″ Deep well pump 370W(0.5HP) Max.head:48m
KSh23,999.00
4″ Deep well pump
Voltage:220-240V~50Hz
Rated power:370W(0.5HP)
Max.head:48m
Max.flow:6.7m³/h
Pipe diameter:1-1/4″
Well pump body:4″
Impeller:6 stage
Copper wire motor
Outlet :Brass
Inlet: Brass
Oil chamber: Brass
Pump body:Stainless steel
20m length cable
1pcs control box
Packed by carton box
Description
TOTAL TWP53706 (also categorized under model variant TWP53701) is a 4″ 370W (0.5 HP) stainless-steel deep well submersible pump. Built for narrow borehole wells, agricultural irrigation, and drawing fresh water from underground aquifers, it utilizes a multi-stage impeller design to deliver high head pressure up to 48 meters.
Technical Specifications
| Parameter | Specification |
| Model Number | TWP53706 / TWP53701 |
| Pump Type | 4″ Submersible Deep Well / Borehole Pump |
| Rated Power Input | 370 W (0.5 HP) |
| Voltage / Frequency | 220–240V ~ 50Hz (Single Phase) |
| Max Lift Head | 48 meters |
| Max Flow Rate | 6.0 – 6.7 m} |
| Outlet Connection Diameter | 1-1/4″ (32 mm) |
| Pump Casing Diameter | 4″ (Fits standard 4″ or larger well casings) |
| Impeller System | 6-Stage Impeller |
| Pump Body Material | Heavy-Duty Stainless Steel |
| Outlet / Oil Chamber Material | Solid Brass |
| Motor Winding | 100% Pure Copper Wire |
| Included Cable Length | 20 meters |
Additional information
| Weight | 10 lbs |
|---|
