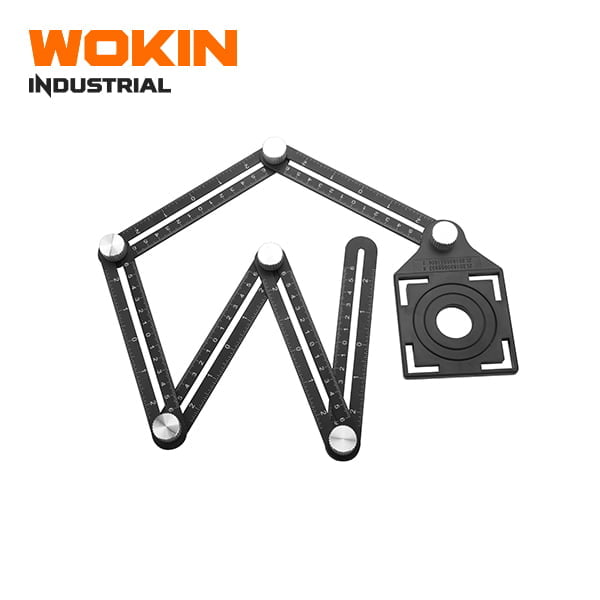

Wokin 357828 Trepanning Locator (Multi-Angle Measuring Ruler with Hole Drilling Guide) is a specialized layout tool designed for precise angle measuring and hole position mapping on tiles, glass, wood, marble, and masonry.

Key Specifications & Features

• Model: 357828 (Industrial Grade)

• Design: 6-folding adjustable arms with an integrated circular hole guide/locator head.

• Material: Heavy-duty aluminum alloy body with durable metal tightening knobs and laser-etched scale markings.

• Hole Locator Sizes: Standard template openings for common pipe and fixture sizes (25mm, 40mm, 45mm, 55mm, and 75mm).

• Adjustability: 360-degree rotating joints with secure locking knobs to lock in custom shapes, angles, and offsets.

• Primary Applications:

  • Tile and floor installation around plumbing outlets and electrical boxes.

  • Transferring exact hole coordinates onto workpieces without manual calculations.

  • Multi-angle layout template creation for carpentry and masonry.
