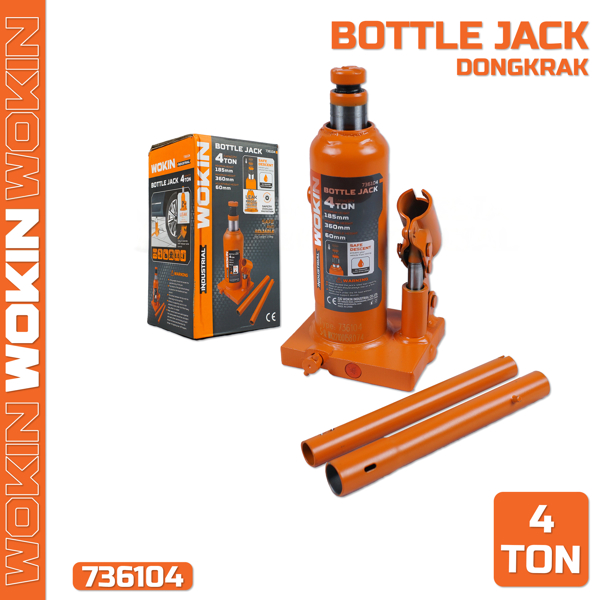

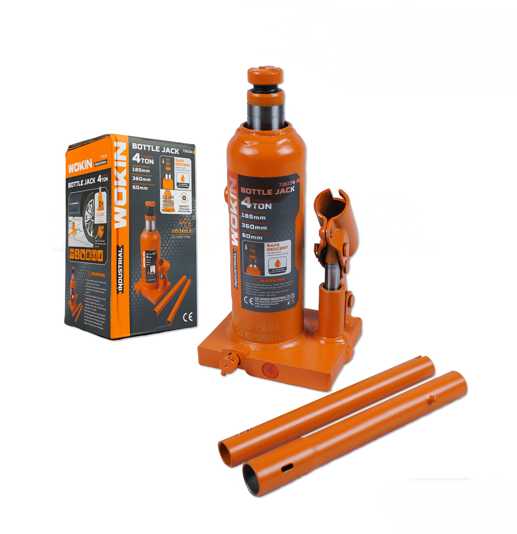

Wokin 4-ton hydraulic bottle jack
KSh5,500.00
Key Features
-
Heat-Treated Extension Screw: Top saddle features a threaded extension that screws out manually to close the gap to the vehicle frame before pumping, maximizing total stroke clearance.
-
Heavy-Duty Cast Base: Broad base plate distributes heavy vertical loads evenly across hard surfaces to ensure stability during operation.
-
Overload Safety Valve: Integrated safety bypass system prevents the hydraulic ram from extending beyond its rated 4-ton capacity.
-
Compact High-Capacity Body: Provides higher load ratings while occupying minimal storage space in service trucks or garage bays.
Wokin 736104 is an industrial-grade 4-ton hydraulic bottle jack designed for lifting SUVs, pick-up trucks, light commercial vans, and heavy machinery components. Featuring a heat-treated extension screw and a drop-forged alloy steel structure, it delivers compact yet high-capacity vertical lifting power.
Technical Specifications
| Feature | Specification |
| Model / SKU | 736104 |
| Lifting Capacity | 4 Ton (4,000 kg) |
| Minimum Height | ~180 mm |
| Lifting Height | ~110 mm |
| Adjustable Extension Height | ~60 mm |
| Maximum Height | ~350 mm |
| Base Material | Heavy-duty cast iron / alloy steel base |
| Operating Mechanism | Hydraulic cylinder with knurled heat-treated extension screw |
| Handle | 2-piece steel pumping lever handle |
| Packaging | Color box |
