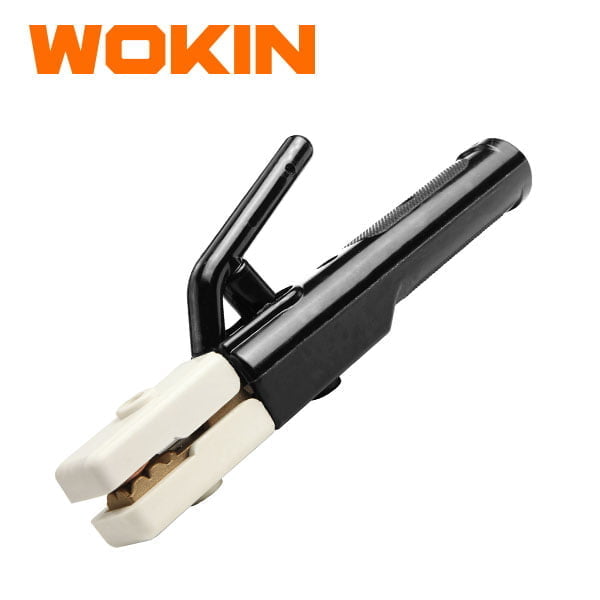

Wokin 582180 Extra Heavy Duty Electrode Holder (800A)

Wokin 582180 Extra Heavy Duty Electrode Holder (800A) is a top-tier industrial arc welding stinger engineered for high-amperage, continuous-duty manual metal arc (MMA/Stick) welding applications.

Key Specifications & Features

• Model: 582180

• Current Rating: 800 Amperes (designed for maximum duty cycles in severe industrial environments)

• Body & Jaw Material: High-density, solid forged brass/copper jaws providing superior electrical conductivity, minimal resistance loss, and maximum heat dissipation

• Heavy-Duty Insulation: Impact-resistant, flame-retardant BMC glass-fiber composite housing covering the entire head assembly to protect operators against intense heat and accidental grounding arc flashes

• Multi-Angle Locking Jaws: Deeply grooved clamping jaws securely hold large-diameter welding electrodes at 45°, 90°, and 180° positions without slipping

• Ergonomic Spring & Handle: Reinforced heavy-gauge steel spring delivers high clamping pressure; fully insulated ribbed handle resists thermal breakdown and high-impact drops

• Cable Terminal Connection: Dual Allen screw clamping block for locking heavy-gauge welding cables firmly, ensuring zero voltage drop under high amperage loads

• Packaging: Color box packaging
