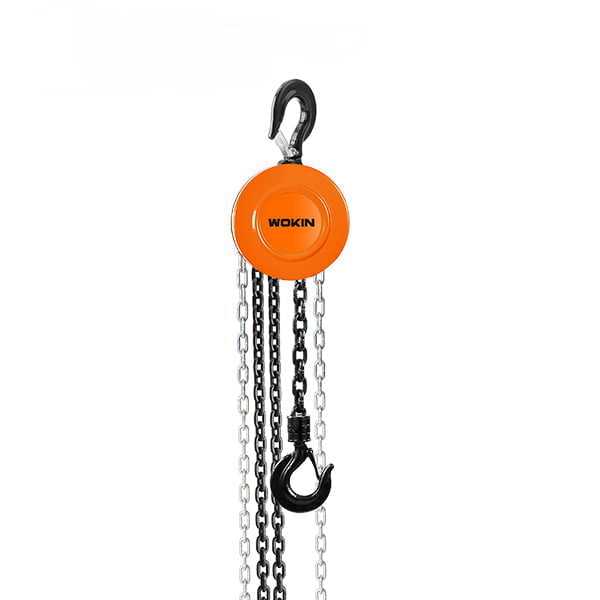

Wokin 738102 Chain Block 2.0 TON
KSh11,500.00
Key Features
-
Grade 80 High-Tensile Alloy Load Chain: Black-oxide heat-treated alloy steel chain delivers extreme tensile strength, wear resistance, and long-term durability under heavy cyclic loads.
-
Weston-Style Mechanical Load Brake: Dual-pawl brake mechanism engages instantly during operation, holding elevated loads safely at any height without slippage.
-
360° Swiveling Drop-Forged Hooks: Upper anchor hook and lower load hook feature heavy-duty safety latches and rotate 360 degrees to prevent load chain twisting or binding.
-
Precision Spur Gear Transmission: Heat-treated internal steel gears reduce user pulling effort on the hand chain while maximizing mechanical lifting efficiency.
-
Enclosed Steel Housing: Rugged metal cover protects the internal gear assembly, brake pads, and hand chain wheel from dust, workshop grit, and external impacts.
Wokin 738102 is an industrial manual chain block hoist designed for heavy vertical lifting, rigging, and mechanical installation tasks up to 2.0 tons (2,000 kg). Featuring heat-treated Grade 80 load chain, a Weston-style double-pawl mechanical load brake, and drop-forged safety hooks, it provides controlled and reliable lifting performance across workshops, construction sites, and manufacturing plants.
Technical Specifications
| Feature | Specification |
| Model / SKU | 738102 |
| Safe Working Load (SWL) | 2.0 Ton (2,000 kg) |
| Standard Lifting Height | 3.0 meters |
| Test Load | 3.0 Tons (30 kN) |
| Load Chain Specification | High-tensile Grade 80 alloy steel (Ø 6 mm x 2 falls or Ø 8 mm x 1 fall) |
| Hand Chain Pull Force | ~335 N at rated full capacity |
| Brake Mechanism | Automatic Weston-style double-pawl mechanical load brake |
| Hooks | Drop-forged alloy steel top & bottom hooks with safety latches (360° swivel) |
| Housing | Heavy-duty steel gear enclosure with impact-resistant orange powder coating |
| Packaging | Color box / reinforced wooden crate packaging |
