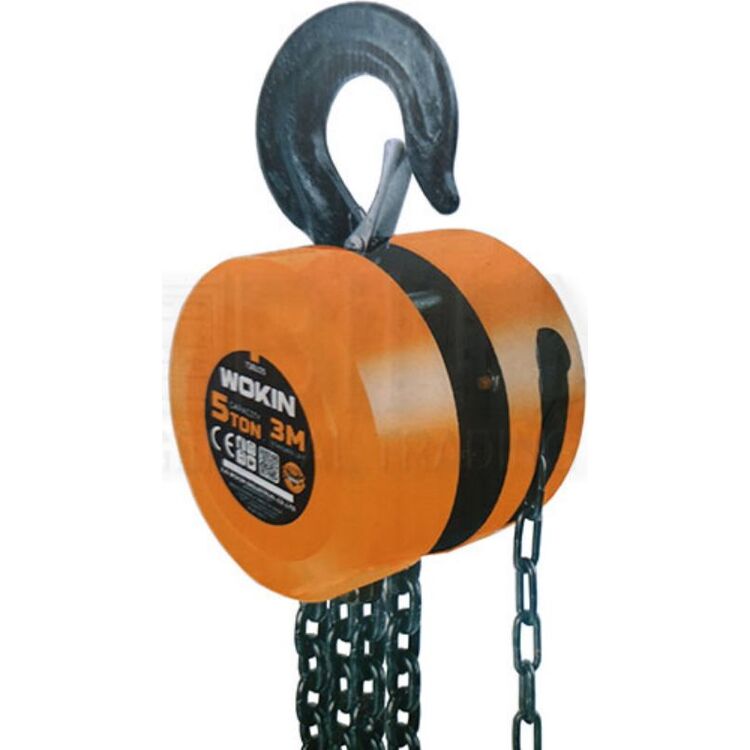

Wokin 738105 Chain Block 5.0 TON
KSh23,500.00
Key Features
-
Grade 80 High-Strength Load Chain: Dual-strand black-oxide heat-treated alloy steel chain delivers extreme wear resistance and tensile strength under severe 5-ton load cycling.
-
Weston-Style Mechanical Load Brake: Independent double-pawl braking system holds elevated 5,000 kg loads securely at any point along the stroke without slippage.
-
Drop-Forged 360° Swivel Hooks: Top anchor and bottom load hooks rotate full circle to prevent chain binding, fitted with heavy-duty spring-loaded steel safety latches.
-
Precision Gear Reduction Assembly: Multi-gear internal spur drive minimizes operator pulling effort on the hand chain while delivering smooth, controlled elevation.
-
Impact-Resistant Steel Casing: Thick-gauge metal housing shields internal drive gears, brake discs, and guide sheaves from impact damage and shop debris.
Wokin 738105 is an extra-heavy-duty 5.0-ton manual chain block hoist engineered for high-tonnage industrial rigging, structural steel placement, heavy machinery installation, and plant maintenance. Built with dual-fall Grade 80 heat-treated alloy steel load chain, a Weston-style double-pawl mechanical brake, and drop-forged swivel safety hooks, it safely manages heavy vertical loads up to 5,000 kg.
Technical Specifications
| Feature | Specification |
| Model / SKU | 738105 |
| Safe Working Load (SWL) | 5.0 Ton (5,000 kg) |
| Standard Lifting Height | 3.0 meters |
| Test Load | 7.5 Tons (75 kN) |
| Load Chain Specification | High-tensile Grade 80 alloy steel (Ø 10 mm x 2 falls) |
| Hand Chain Pull Force | ~414 N at rated full capacity |
| Brake Mechanism | Automatic Weston-style double-pawl mechanical load brake |
| Hooks | Drop-forged alloy steel top & bottom hooks with safety latches (360° swivel) |
| Housing | Heavy-gauge steel casing with high-visibility orange powder coating |
| Packaging | Reinforced wooden crate |
