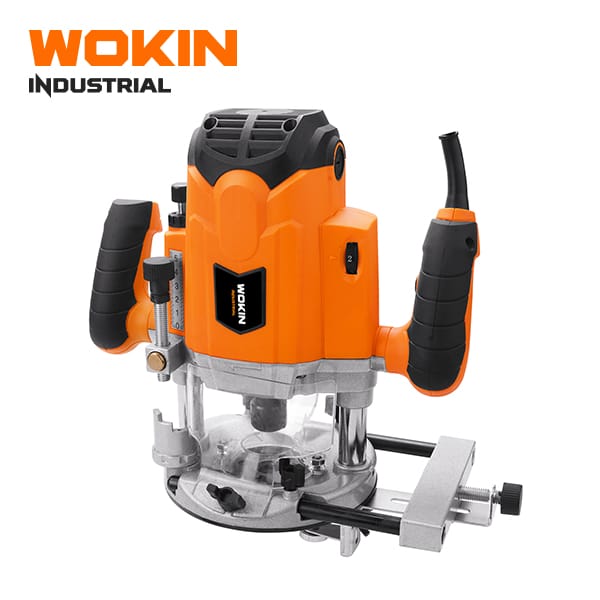

Wokin 783611 Industrial Electric Router (2100W)

Wokin 783611 Industrial Electric Router (2100W) is a heavy-duty woodworking power tool engineered for precision routing, grooving, profiling, edge trimming, and jointing in hardwoods, softwoods, and composite timber products.

Technical Specifications

• Stock / Model Code: 783611

• Rated Input Power: 2,100 W

• Rated Voltage & Frequency: 220–240 V ~ 50/60 Hz

• No-Load Speed: 12,000 – 23,500 RPM (Variable speed dial control)

• Plunge Depth Capacity: 0 – 55 mm

• Collet Sizes Included: 1/2″, 1/2″ adapters/collets for 8 mm, 12 mm, and 5/16″

• Base Construction: Precision aluminum plane floor / plunge base

• Certifications: CE approved

Key Operational Features

1. Variable Speed Dial: Allows speed adjustment between 12,000 and 23,500 RPM to match bit diameter and material hardness, preventing wood burning on larger profile cutters.

2. Plunge Depth Adjustment: Micro-adjustable depth gauge with multi-step turret stop for accurate stepped plunge cutting up to $55\text{ mm}$ depth.

3. Aluminum Base Plate: Flat-machined aluminum base floor ensures smooth sliding action along guide rails or template fences.

4. Dust Extraction Connection: Includes a dust extraction port/bag connector to hook up to workshop vacuum systems or extraction units.
