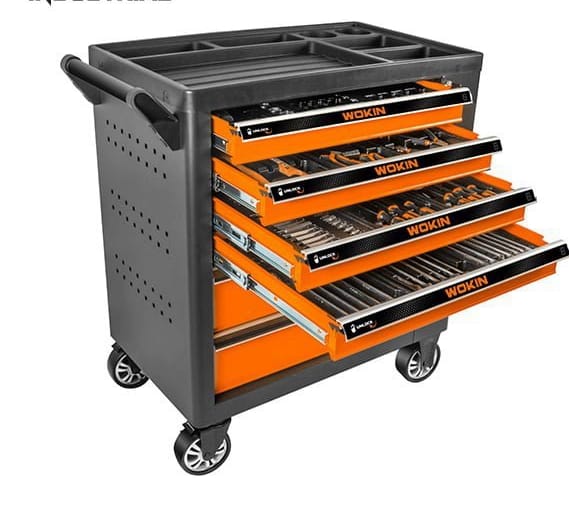

Wokin 901510 163-Piece Industrial Roller Cabinet Tool Set

Wokin 901510 163-Piece Industrial Roller Cabinet Tool Set is a heavy-duty, mobile workshop tool storage system designed for automotive technicians, equipment repair facilities, and industrial maintenance shops.

It features a 6-drawer rolling cabinet pre-organized with high-grade Chrome Vanadium (Cr-V) and S2 alloy steel hand tools placed inside custom EVA foam tray inserts.

Key Specifications & Features

• Stock / Model Code: 901510

• Cabinet Configuration: 6 smooth-sliding drawers with central key lock mechanism.

• Overall Cabinet Dimensions: 765 × 465 × 730 mm (840 × 465 × 885 mm including casters).

• Mobility: 4 heavy-duty casters (5″ x 1.88″) including swivel/locking wheels and a side transport handle.

• Build Quality: Heavy-gauge steel cabinet body; high-torque Cr-V steel sockets and spanners; hardened S2 steel screwdriver bits.

Detailed Component Breakdown by Drawer

Drawer 1: Sockets, Ratchets & Drive Accessories

• 1/2″ Drive Sockets (6-Point, 18 pcs): 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 27, 30, 32 mm.

• 1/2″ Drive Deep Sockets (6-Point, 14 pcs): 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21 mm.

• 1/4″ Drive Sockets (6-Point, 13 pcs): 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14 mm.

• 1/4″ Drive Deep Sockets (6-Point, 5 pcs): 8, 10, 11, 12, 13 mm.

• Ratchets & Handles:

  • 1pc 1/2″ Reversible Ratchet Handle

  • 1pc 1/4″ Reversible Ratchet Handle

  • 1pc 1/4″ Spinner Handle

  • 1pc 1/4″ Sliding T-Bar (110 mm)

• Extensions & Adaptors:

  • 2pcs 1/2″ Extension Bars (125 mm & 255 mm)

  • 2pcs 1/4″ Extension Bars (50 mm & 100 mm)

  • 1pc 1/4″ Flexible Extension Shaft (150 mm)

  • 2pcs Spark Plug Sockets (1/2″ x 16 mm & 21 mm)

  • 2pcs Universal Joints (1/2″ & 1/4″ Drive)

  • 1pc 1/2″ 3-Way Adaptor

Drawer 2: Pliers, Circlip Pliers, Hammers & Chisels

• Standard Workshop Pliers (4 pcs):

  • 1pc 7″ (180 mm) Combination Pliers

  • 1pc 6″ (160 mm) Diagonal Cutting Pliers

  • 1pc 6″ (160 mm) Long Nose Pliers

  • 1pc 6″ (160 mm) Bent Nose Pliers

• Circlip Pliers Set (4 pcs):

  • 1pc 7″ (180 mm) Internal Straight Circlip Pliers

  • 1pc 7″ (180 mm) Internal Bent Circlip Pliers

  • 1pc 7″ (180 mm) External Straight Circlip Pliers

  • 1pc 7″ (180 mm) External Bent Circlip Pliers

• Striking & Punch Set (5 pcs):

  • 1pc 300g Machinist Hammer (Wooden Handle)

  • 1pc 40mm Dead Blow Mallet

  • 1pc Cold Chisel (13 x 10 x 152 mm)

  • 1pc Cape Chisel (5 x 10 x 152 mm)

  • 1pc Taper Chisel (2 x 10 x 152 mm)

Drawer 3: Screwdrivers & Bit Sets

• Full-Sized Screwdrivers (14 pcs):

  • Slotted: 3×75, 5.5×100, 5.5×150, 6.5×38 (stubby), 6.5×100, 6.5×150, 8×150 mm

  • Phillips: PH0x75, PH1x75, PH1x100, PH2x38 (stubby), PH2x100, PH2x150, PH3x150 mm

• 10mm Heavy-Duty S2 Screwdriver Bits (38 pcs + 1/2″ Adaptor):

  • 19pcs Short Bits (30 mm Length):

    • Hex: H4, H5, H6, H7, H8, H10, H12

    • Spline (M-Type): M5, M6, M8, M10, M12

    • Torx: T20, T25, T30, T40, T45, T50, T55

  • 19pcs Long Bits (75 mm Length):

    • Hex: H4, H5, H6, H7, H8, H10, H12

    • Spline (M-Type): M5, M6, M8, M10, M12

    • Torx: T20, T25, T30, T40, T45, T50, T55

  • 1pc Bit Adaptor: 1/2″ Drive x 10 mm

Drawer 4: Spanners & Wrenches

• Combination Spanners (19 pcs): 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24, 27 mm.

• Double Offset Ring Spanners (7 pcs): 6×7, 8×9, 10×11, 12×13, 14×15, 16×17, 18×19 mm.

Drawer 5 & 6: Accessories & Open Storage

• Included Accessories:

  • 1 pair of latex-coated safety working gloves

  • 5 hanging side hooks for cabinet pegboards

• Storage Allocation: The lower drawers remain available to add power tools, diagnostic equipment, or additional specialty gear.
