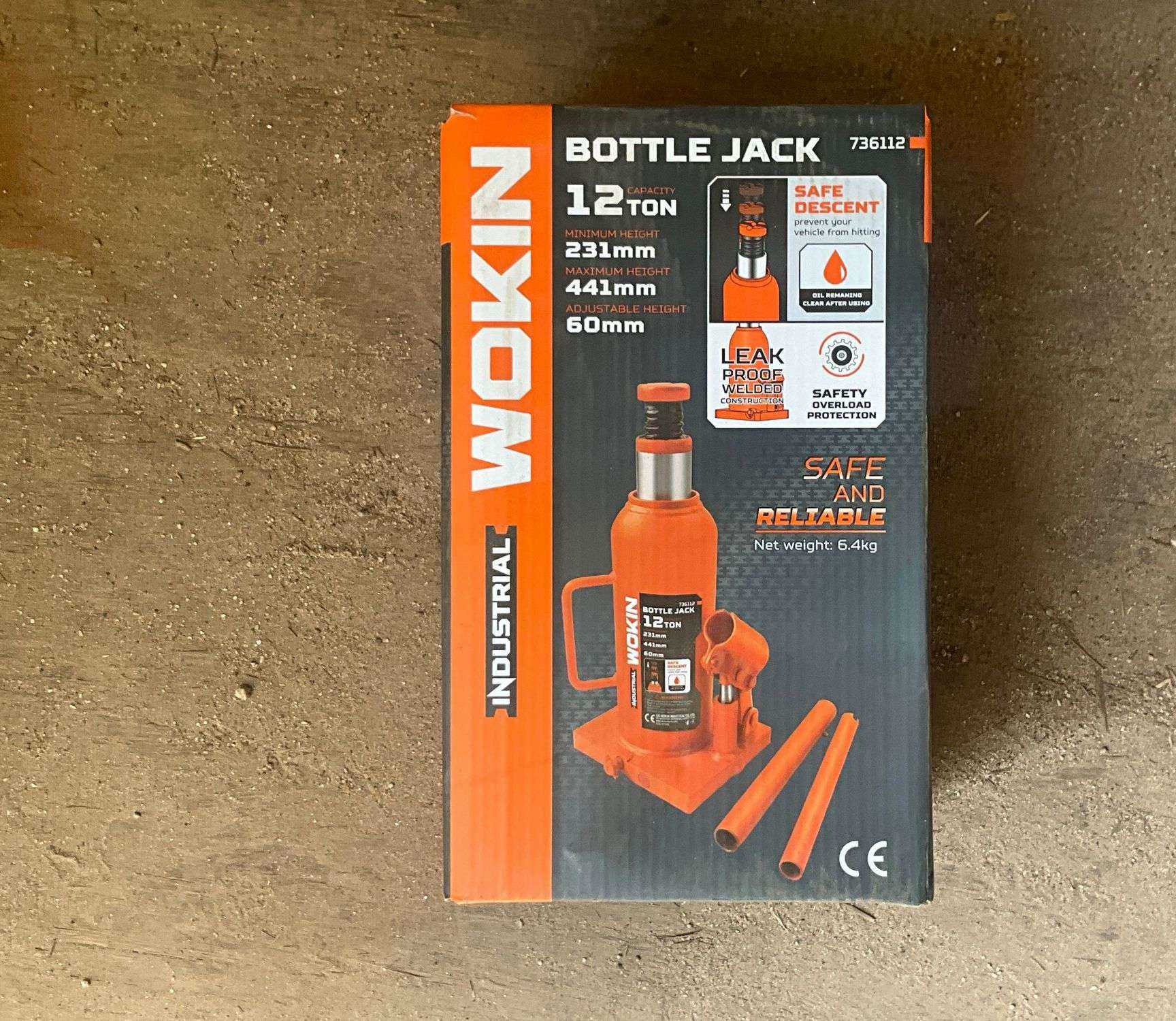

Wokin Bottle Jack 12TON
KSh10,500.00
Key Features
-
Industrial 12-Ton Rating: Engineered to lift heavy truck axles, loaded utility trailers, buses, and heavy equipment chassis during shop repairs or tire changes.
-
Integrated Side Carry Handle: Features a side-mounted handle to make transport and positioning under low vehicle clearances easier and safer.
-
Knurled Threaded Extension Screw: Adjusts manually to eliminate dead air space between the saddle and the lifting point, maximizing effective hydraulic stroke.
-
Safety Overload Protection: Internal safety valve prevents the cylinder from operating beyond its 12-ton limit, guarding against pressure blowouts.
-
Broad Cast Base: Solid footpad distributes heavy vertical loads evenly across hard surfaces to ensure stability under full capacity.
Wokin 736112 is a heavy-duty 12-ton industrial hydraulic bottle jack designed for heavy vehicle servicing, commercial transport fleets, agricultural machinery, and industrial rigging work. Built with a drop-forged alloy steel structure, wide cast iron base, and heat-treated extension screw, it safely delivers 12,000 kg of vertical lifting capacity.
Technical Specifications
| Feature | Specification |
| Model / SKU | 736112 |
| Lifting Capacity | 12 Ton (12,000 kg) |
| Minimum Height | ~230 mm |
| Lifting Height | ~150 mm |
| Adjustable Extension Height | ~80 mm |
| Maximum Height | ~460 mm |
| Base Material | Heavy-duty cast iron / alloy steel base plate |
| Operating Mechanism | Single-piston hydraulic ram with knurled extension screw |
| Handle | Integrated side carrying handle + 2-piece steel pumping lever |
| Packaging | Color box |
