Total TAT10401 Air spray gun 400cc
KSh3,050.00
Total TAT11005 Air spray gun 1000cc
KSh3,999.00
Total AT10601 HVLP Air spray gun 600cc
KSh3,500.00
Key Highlights
-
HVLP Efficiency: Delivers higher paint transfer rates to the surface with less atomized fog, saving paint compared to standard high-pressure guns.
-
Adjustable Controls: Features dedicated knobs for pattern shape adjustment, fluid volume control, and air pressure tuning.
-
Versatile Compatibility: Standard 1.4 mm nozzle setup handles clear coats, polyurethane, lacquers, enamel finishes, and light primers.
Description

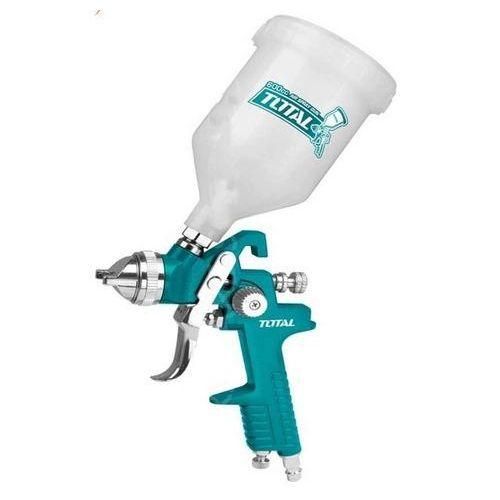

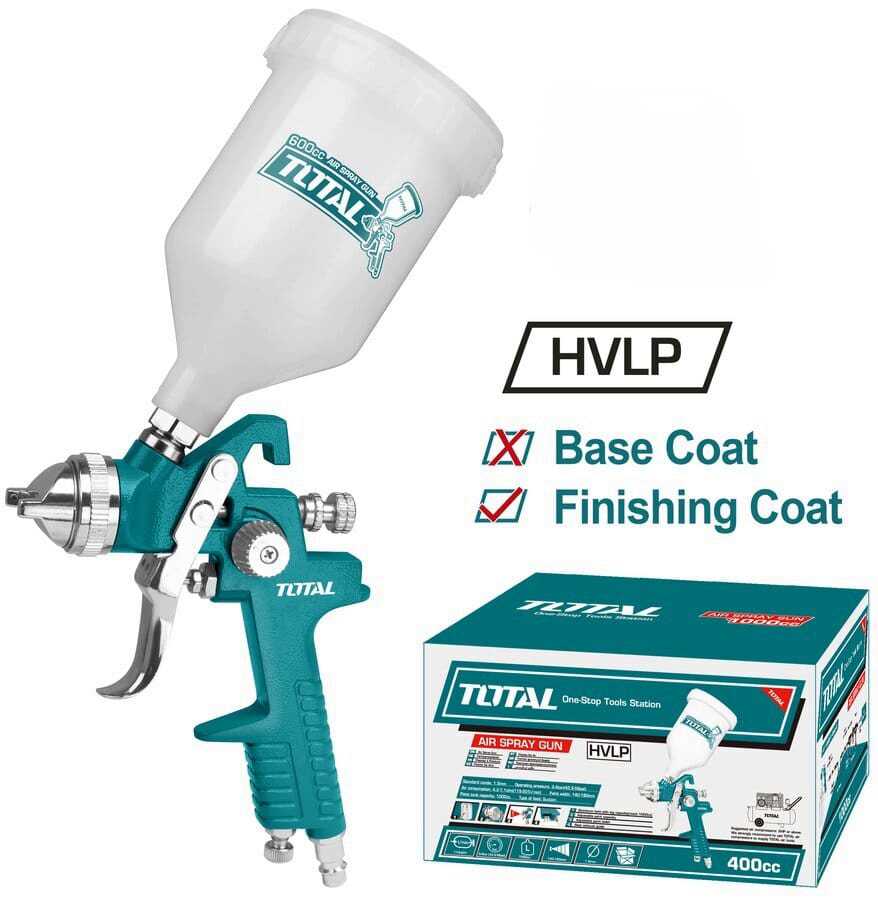

TOTAL TAT10601 is a gravity-feed High Volume Low Pressure (HVLP) pneumatic air spray gun engineered for precise finishing coats, reduced overspray, and high material transfer efficiency.
Technical Specifications
| Feature | Specification |
| Technology | HVLP (High Volume Low Pressure) |
| Feed Type | Gravity Feed |
| Paint Capacity | 600 cc |
| Standard Nozzle Size | 1.4 mm (Optional range: 1.3 mm – 2.5 mm) |
| Operating Pressure | 2.0 – 3.5 bar (29 – 50.8 psi) |
| Max Air Pressure | 8.3 bar (120 psi) |
| Air Consumption | 4.2 – 7.1 CFM (119 – 200 L/min) |
| Pattern Width | 180 – 250 mm (7″ – 10″) |
| Air Inlet Size | 1/4″ standard |
| Included Quick Couplers | Europe, USA, Nitto, and Italy type connectors |
| Primary Application | Topcoats, clear coats, base coats, and fine detail finish work |
Additional information
| Weight | 3 lbs |
|---|
