Total TAT10401 Air spray gun 400cc
KSh3,050.00
Air spray gun
Standard nozzle:1.5mm
Pattern width:180-250mm
Paint capacity:400cc
Suitable for base coat
With Europe type connector, USA type
connector, Nitto type connector and
Italy type connector.
Optional nozzle:1.2-1.8mm
Operating pressure:3-4bar
Air cons:4.2-7.1cfm(119-200l/min)
Packed by color box
Description

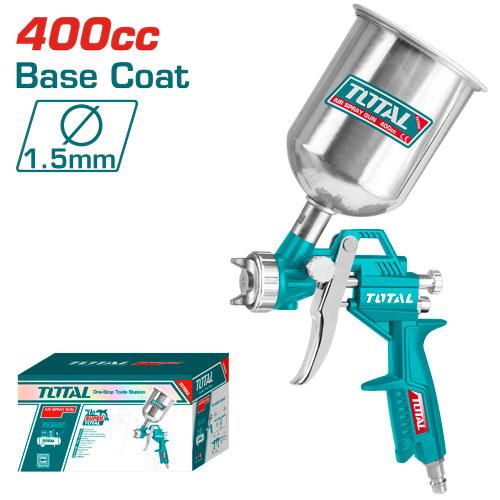

TOTAL TAT10401 is a gravity-feed pneumatic air spray gun designed primarily for base coats, varnishes, lacquers, and light-to-medium viscosity finishing applications.
Technical Specifications
| Feature | Specification |
| Feed Type | Gravity Feed |
| Paint Cup Capacity | 400 cc |
| Standard Nozzle Size | 1.5 mm (Optional range: 1.2 mm – 1.8 mm) |
| Operating Pressure | 3 – 4 bar (43.5 – 58 psi) |
| Max Air Pressure | 8.3 bar (120 psi) |
| Air Consumption | 4.2 – 7.1 CFM (119 – 201 L/min) |
| Pattern Width | 180 – 250 mm (7″ – 10″) |
| Air Inlet Size | 1/4″ standard |
| Included Quick Couplers | Europe, USA, Nitto, and Italy type connectors included |
| Primary Application | Base coats, lacquers, enamels, and automotive/woodworking finishes |
Additional information
| Weight | 10 lbs |
|---|
