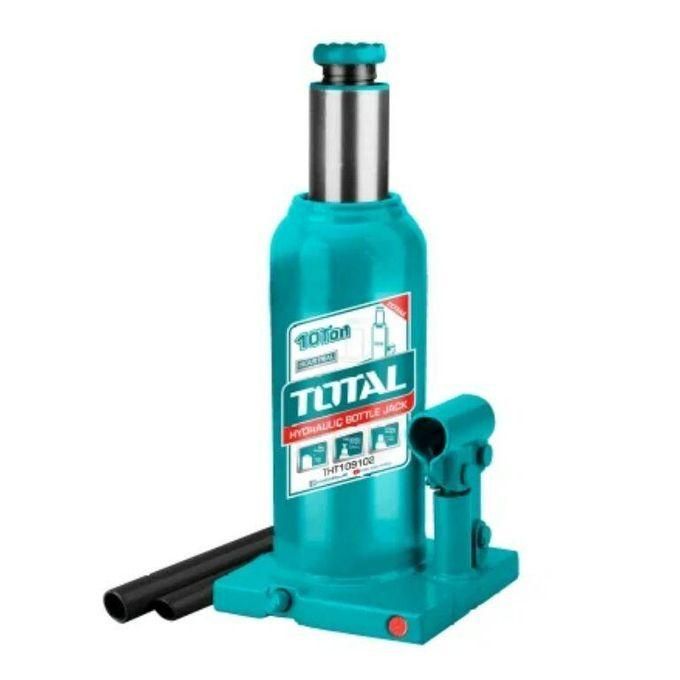

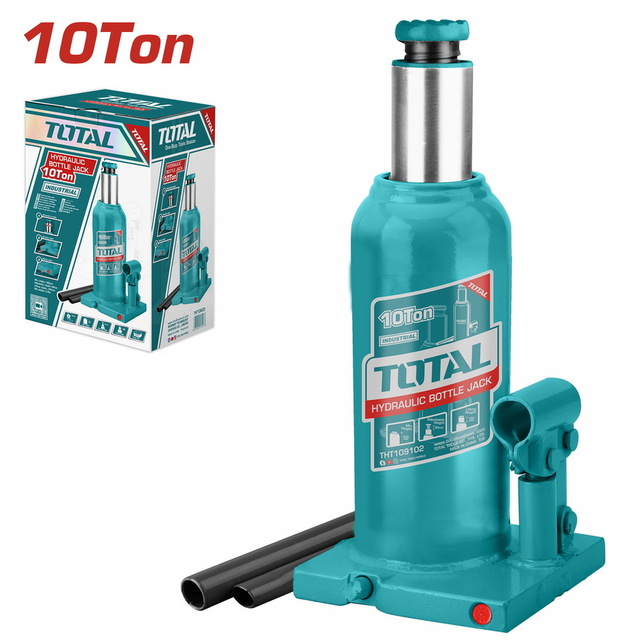

Total Hydraulic bottle jack 10Ton With safety valve

Key Specifications

• Lifting Capacity: 10 Tons (10,000 kg)

• Minimum Height: 230 mm (The lowest point the jack can fit under)

• Maximum Height: 460 mm (The maximum height reachable with the screw extension fully turned out)

• Lifting Height: 150 mm (The distance the hydraulic ram travels)

• Adjustable Screw Height: 80 mm (The manual screw at the top of the ram for fine-tuning the starting height)

• Net Weight: Approximately 6.5 kg

Key Features

• Built-in Safety Valve: This prevents the hydraulic system from exceeding its maximum 10-ton capacity. If you attempt to lift something too heavy, the valve safely bypasses the fluid pressure to prevent structural failure or sudden dropping.

• Adjustable Heat-Treated Screw: The top saddle features a rugged screw extension, allowing you to quickly close the gap between the jack and the load before you even start pumping.

• Heavy-Duty Base: Features a wide, stable cast iron or forged steel base to distribute weight evenly and prevent tipping.

• Two-Piece Pump Handle: Comes with a split handle that connects easily for maximum leverage during pumping and separates for compact storage.
