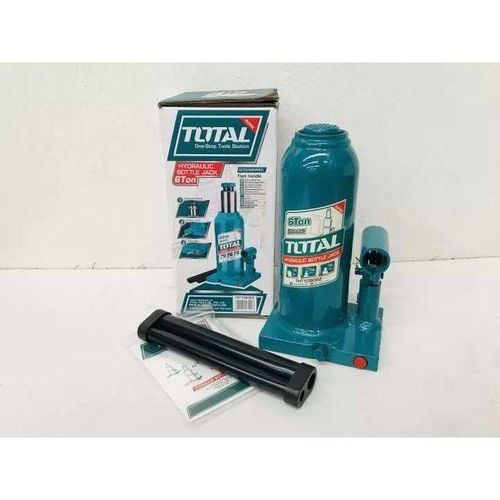

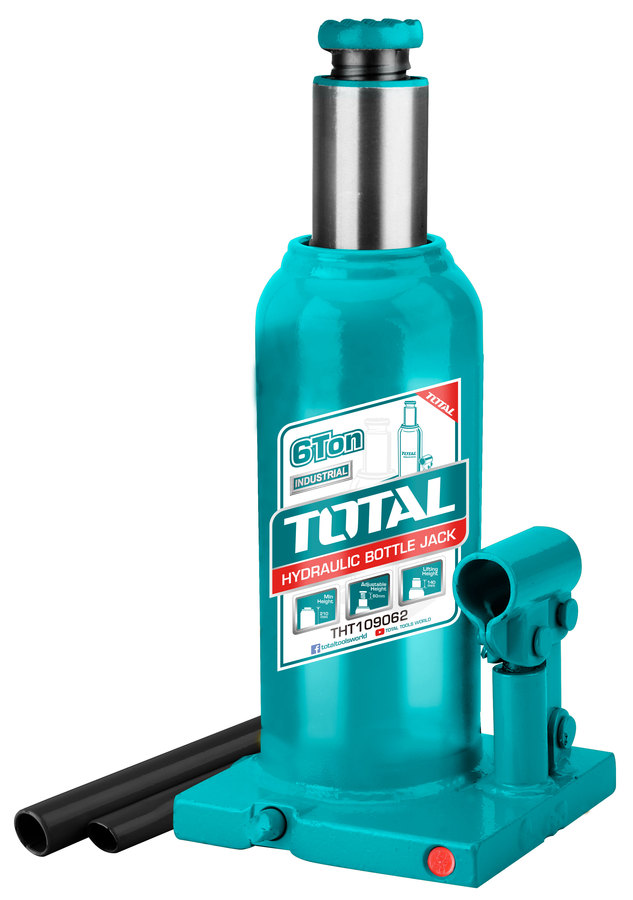

Total Hydraulic bottle jack 6Ton With safety valve

Key Specifications

• Lifting Capacity: 6 Tons (6,000 kg)

• Minimum Height: 216 mm (Sits slightly lower than the 10-ton, allowing it to clear tighter spaces)

• Maximum Height: 413 mm (Total extension height with the screw fully turned out)

• Lifting Height: 127 mm (The stroke length of the hydraulic piston)

• Adjustable Screw Height: 70 mm (Top saddle screw for fine-tuning your contact point)

• Net Weight: Approximately 4.7 kg (Significantly lighter and easier to transport than the 10-ton model)

Key Features

• Overload Safety Bypass Valve: The integrated safety valve ensures that the hydraulic system will not lock up or fail structurally under excessive weight, protecting both you and the vehicle.

• Heat-Treated Saddle & Extension Screw: The grooved saddle provides a slip-resistant grip on the vehicle’s lifting point, while the adjustable top screw maximizes your starting lift range.

• Compact Footprint: The heavy-duty forged steel base provides solid stability while taking up minimal trunk or shelf space.

• Easy Operation: Features the standard dual-piece interlocking handle for hydraulic pumping and release valve control.
