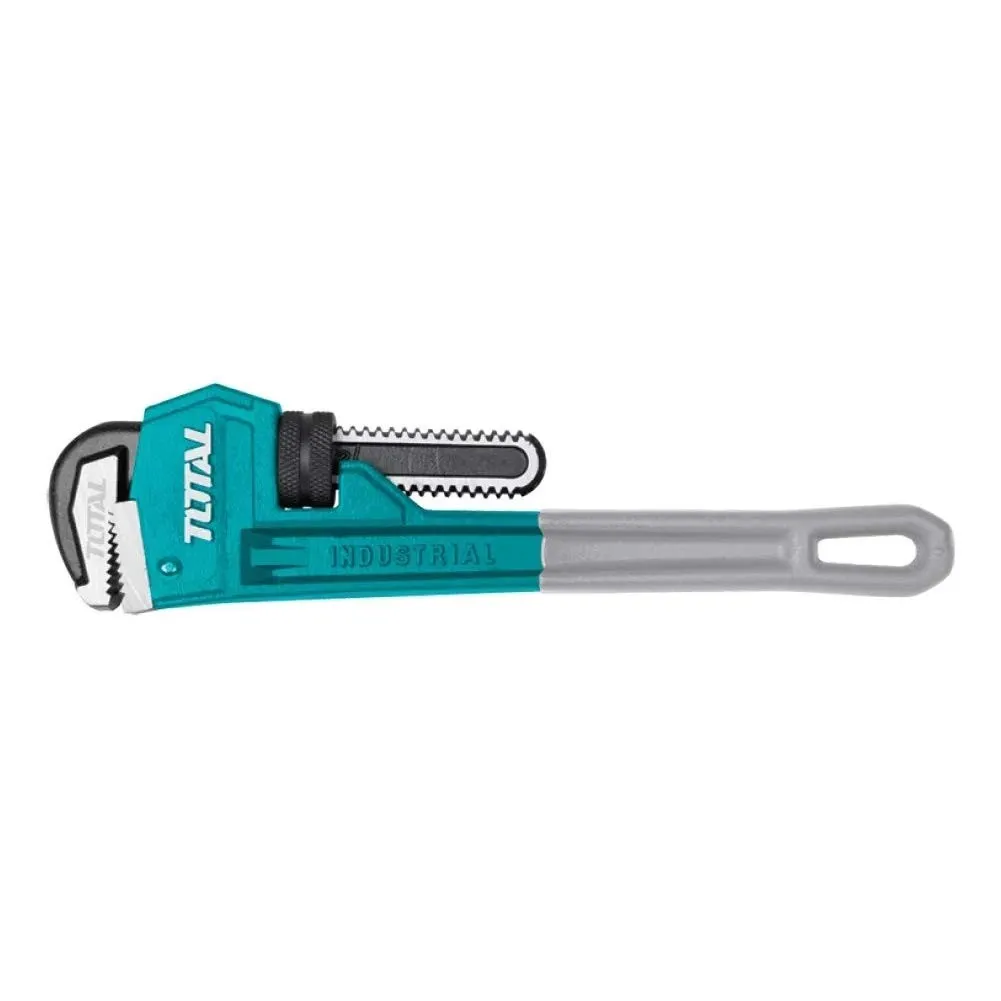

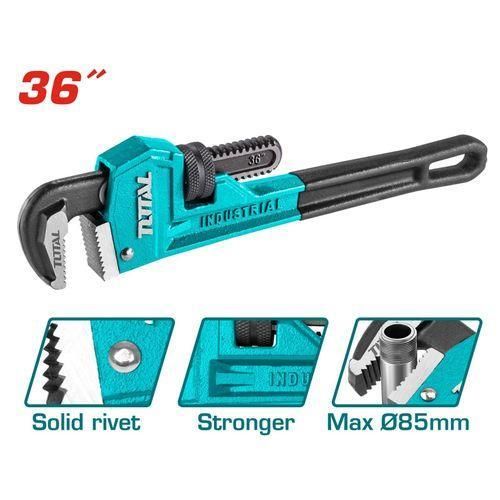

Total THT171366 Pipe wrench Size:36″

TOTAL THT171366 is an heavy-duty 36-inch Stillson-type pipe wrench built for heavy industrial mechanical work, municipal water infrastructure, oil and gas installations, and large-diameter piping applications requiring extreme leverage.

Technical Specifications

• Model Code: THT171366

• Length: 900 mm / 36 inches

• Max Clamping Diameter: 85 mm (approx. 3.5-inch pipe capacity)

• Body Material: High-strength ductile cast iron frame

• Jaw Material: Drop-forged Chrome-Molybdenum (Cr-Mo) steel with induction-hardened teeth

• Finish: Precision-ground anti-rust black teeth with signature industrial teal body frame

Key Features

• High-Strength Cr-Mo Steel Jaws: Precision-machined Chrome-Molybdenum hook and heel jaws are heat-treated to bite deep into thick-walled steel pipes and prevent slippage under extreme torque.

• Large 85mm Jaw Opening: Clamps up to 85 mm (approx. 3.5-inch) nominal pipe sizes, ideal for municipal water mains, industrial gas infrastructure, and heavy agricultural plumbing.

• Maximum Mechanical Leverage: The extended 900 mm handle provides maximum leverage, allowing operators to easily break stubborn, seized, or corroded large-bore pipe connections with minimal physical effort.

• Ductile Cast Iron Frame: Heavy-duty body housing absorbs intense rotational force and shock loads without cracking, twisting, or structural failure.

• Self-Cleaning Thread & Nut: Non-stick knurled adjustment nut resists binding from mud, rust, and thread compound for smooth one-handed jaw sizing.

• Full-Floating Hook Jaw: Built with spring suspension for smooth ratcheting action and rapid release from round workpieces.
