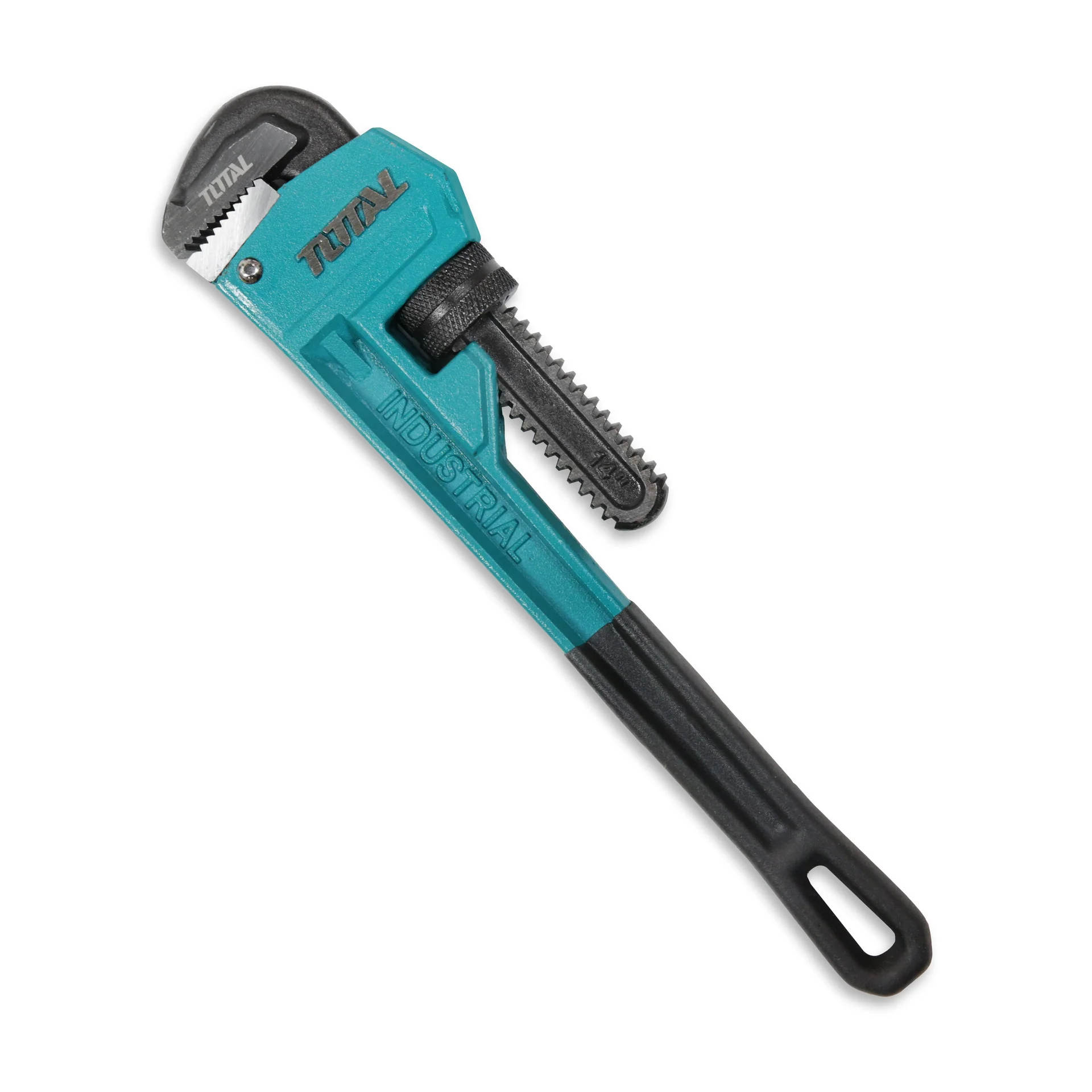

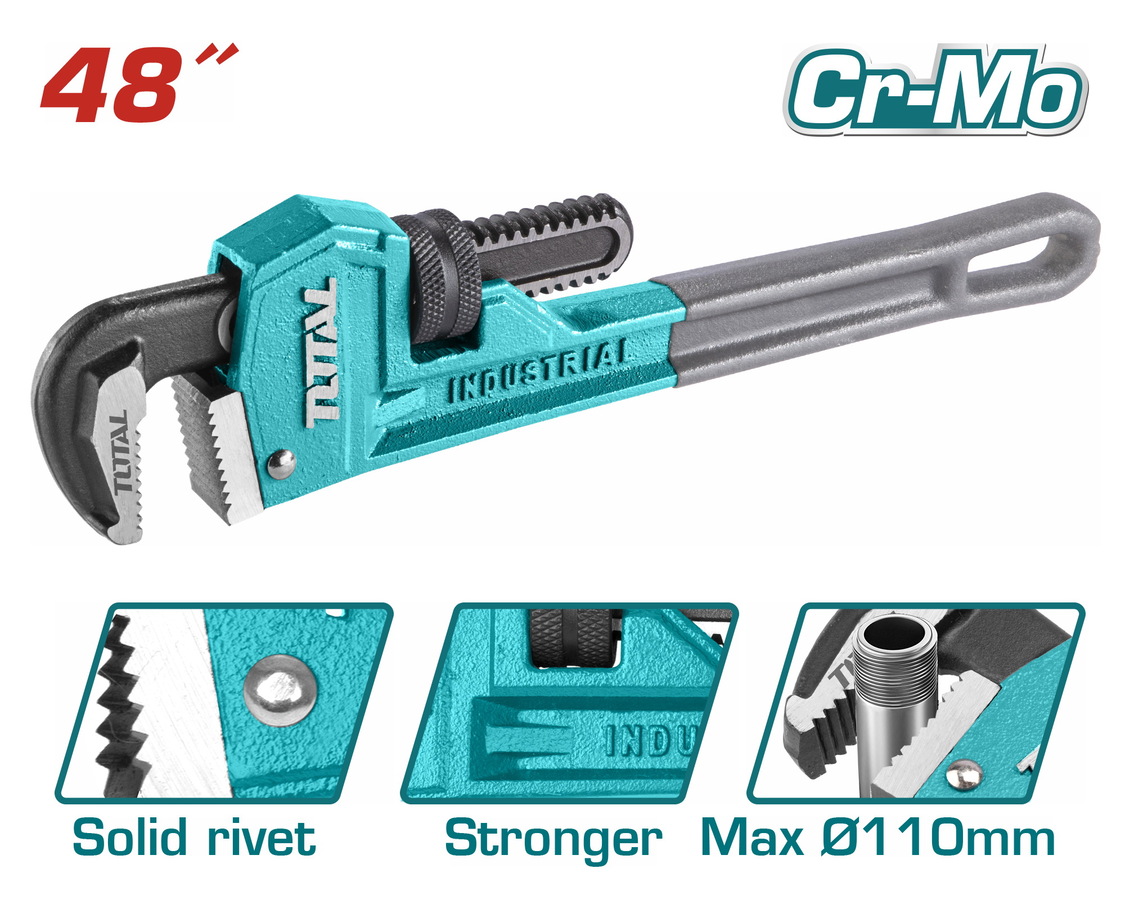

Total THT171486 Pipe wrench Size:48″

The TOTAL THT171486 is an ultra-heavy-duty 48-inch Stillson-type pipe wrench designed for extreme industrial applications, heavy utility maintenance, oil fields, and large-diameter piping work requiring massive turning leverage.

Technical Specifications

• Model Code: THT171486

• Length: 1200 mm / 48 inches

• Max Clamping Diameter: 110 mm (approx. 4.5-inch to 5-inch pipe capacity)

• Body Material: High-strength ductile cast iron frame

• Jaw Material: Drop-forged Chrome-Molybdenum (Cr-Mo) steel with induction-hardened teeth

• Finish: Precision-ground anti-rust black teeth with signature industrial teal body frame

Key Features

• High-Strength Cr-Mo Steel Jaws: Precision-machined Chrome-Molybdenum hook and heel jaws are heat-treated to bite deep into large steel pipes and fittings, resisting tooth dulling and slipping under maximum mechanical stress.

• Massive 110mm Jaw Opening: Clamps up to 110 mm outer diameter pipes, making it suitable for municipal water mains, industrial oil and gas pipelines, and heavy agricultural irrigation infrastructure.

• Maximum Industrial Turning Leverage: The 1200 mm (4-foot) extended handle allows operators to break seized, corroded, or high-torque large-bore pipe connections with maximum mechanical advantage.

• Ductile Cast Iron Frame: Heavy-duty body housing absorbs intense rotational torque and heavy shock loads without cracking, twisting, or deforming.

• Self-Cleaning Thread & Nut: Non-stick knurled adjustment nut resists binding from mud, scale, and pipe compound for smooth jaw sizing adjustments.

• Full-Floating Hook Jaw: Built-in spring suspension provides efficient ratcheting motion and rapid release from large workpieces.
