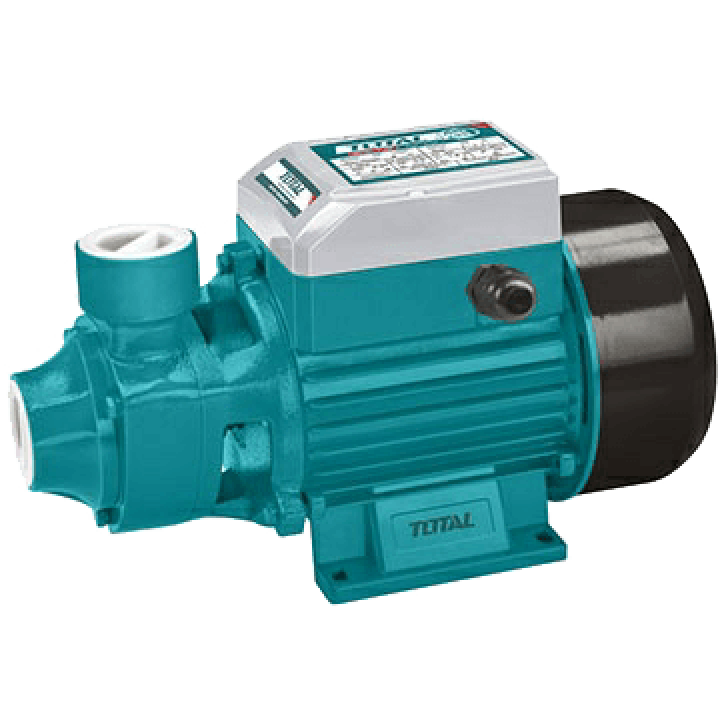

Total TWP17506 Water pump 750W(1.0HP) Max.head:52m
KSh10,999.00
Key Features & Capabilities
-
High Vertical Lift (52m Head): Generates sufficient discharge pressure to easily lift water to multi-story overhead storage tanks (3–5 floors) or maintain pressure over longer pipeline runs.
-
Brass Impeller & Electrophoresis Body: Equipped with a solid brass peripheral impeller to minimize scaling and rust binding, while the electro-coated cast iron body inhibits internal corrosion during idle periods.
-
Increased Flow Rate: Delivers up to 50 L/min (66% higher capacity than the 370W model), shortening tank fill times and running larger irrigation zones simultaneously.
-
100% Copper Motor Windings: Enhances thermal efficiency and operational life under continuous running cycles.
TOTAL TWP17506 is a high-head 750W (1.0 HP) electric peripheral water pump. Designed as a step-up from the 0.5 HP model, it delivers greater discharge pressure and flow volume for multi-story residential water delivery, domestic pressure boosting, automated lawn sprinkler systems, and transfer from ground tanks or shallow wells.
Technical Specifications
| Parameter | Specification |
| Model Number | TWP17506 |
| Pump Type | Peripheral Water Pump |
| Rated Power Input | 750 W (1.0 HP) |
| Voltage / Frequency | 220–240V ~ 50Hz (Single Phase) |
| Max Lift Head | 52 meters |
| Max Flow Rate | 50 L/min (3,000 L/hr) |
| Max Suction Lift | 8 meters |
| Inlet / Outlet Diameter | 1″ × 1″ (25 mm) |
| Motor Winding | 100% Copper Wire Motor |
| Impeller Material | Solid Brass |
| Shaft Material | 304 Stainless Steel + 45# Steel |
| Unit Weight | ~6.0 kg |
| Weight | 5 lbs |
|---|
