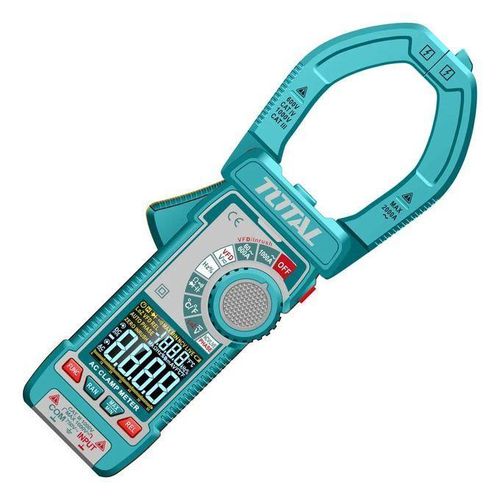

Total TMT7610001 Digital AC clamp meter 1200A 6000 counts

TOTAL TMT7610001 is a heavy-duty 6000-count True RMS AC digital clamp meter engineered for high-current industrial diagnostics, commercial electrical systems, and HVAC maintenance up to 1000A/1200A AC.

Key Measurement Ranges

• AC Current (via Clamp): 60A / 600A / 1000A (Peak rating up to 1200A)

• AC Voltage: 60mV / 600mV / 6V / 60V / 600V / 750V (True RMS)

• DC Voltage: 60mV / 600mV / 6V / 60V / 600V / 1000V

• Resistance: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ

• Capacitance: 10nF / 100nF / 1000nF / 10µF / 100µF / 1000µF / 10mF / 100mF

• Frequency & Duty Cycle: 10 Hz to 10 MHz / 1% to 99%

• Temperature Range: -40°C to 1000°C (-40°F to 1832°F) via K-type thermocouple

Key Features & Functions

• Display: 6000-count backlit LCD screen with True RMS measurement for non-linear load accuracy

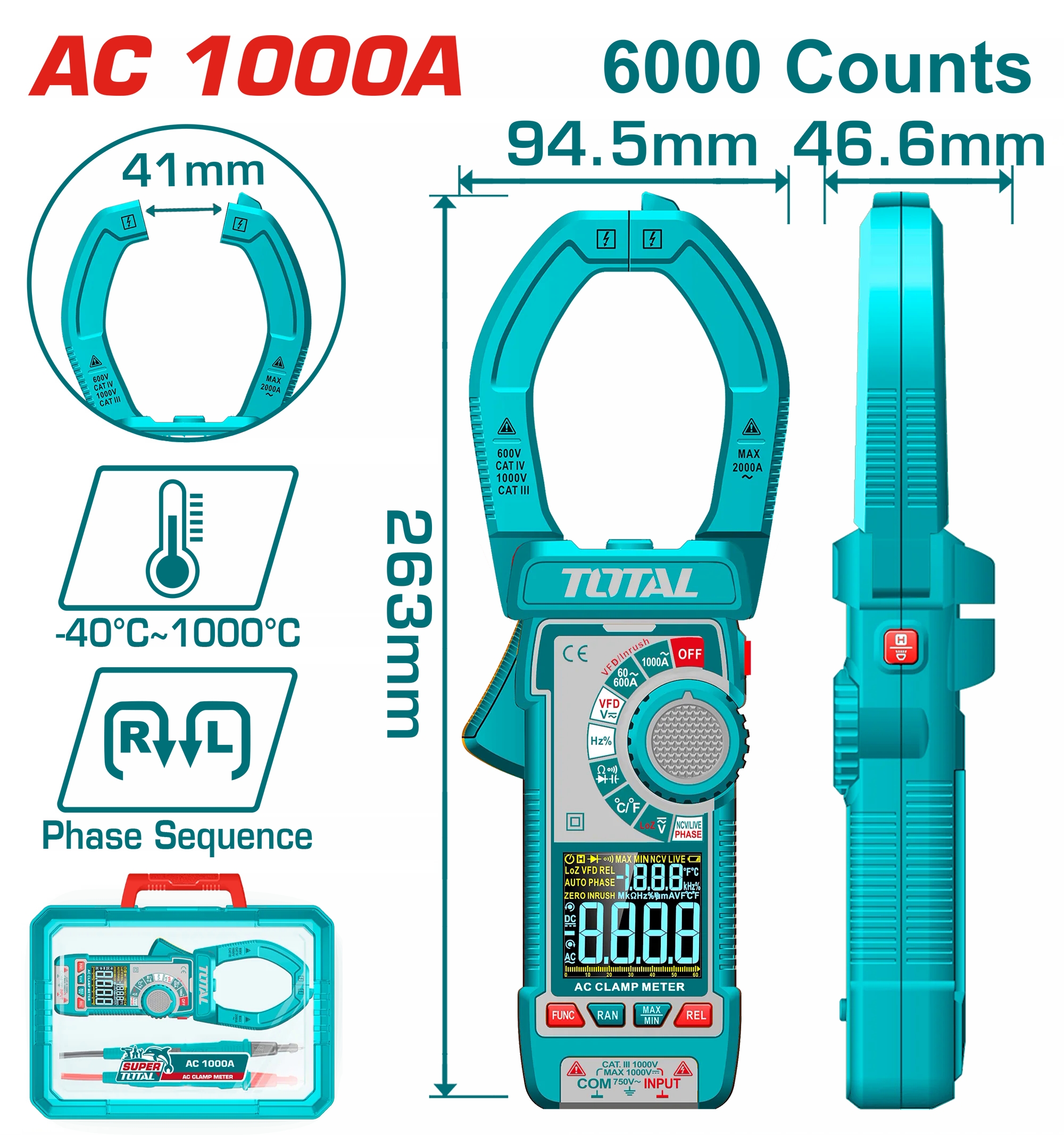

• Large Jaw Opening: 41 mm clamp jaw design to easily fit around large industrial feeder cables and thick busbars

• Advanced Electrical Diagnostics: Variable Frequency Drive (VFD) voltage measurement, Inrush Current mode for motor startup testing, and 3-phase Phase Sequence detection

• Safety & Detection: Integrated Non-Contact Voltage (NCV) sensor and Live line identification

• Workplace Utility: Retention modes (Data Hold, Min/Max, Peak Hold), Low Battery indicator, Auto Power-Off, and built-in flashlight

• Power Supply: 3 × 1.5V AAA (LR03) batteries
