Total TMT762001 Digital AC clamp meter 400A 4000 counts

TOTAL TMT762001 is a compact 4000-count digital AC clamp meter engineered for non-invasive electrical testing, HVAC maintenance, and current diagnostics up to 400A.

Key Measurement Ranges

• AC Current (via Clamp): 4A / 40A / 400A

• AC Voltage: 4V / 40V / 400V / 600V

• DC Voltage: 400mV / 4V / 40V / 400V / 600V

• Resistance: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ

• Capacitance: 4nF / 40nF / 400nF / 4µF / 40µF / 400µF / 4mF

Key Features & Functions

• Display: 4000-count backlit LCD screen with clear reading in dark environments

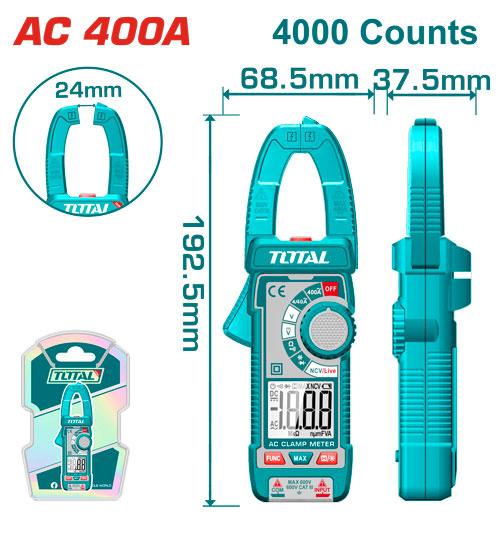

• Jaw Opening Size: 24 mm clamp jaw for clamping around single conductors without breaking the circuit

• Safety & Detection: Non-Contact Voltage (NCV) detection function for quick live-line tracing

• Utility Features: Data Hold, Max value retention, Diode test, Continuity buzzer, and auto power-off conserve energy

• Workplace Utility: Integrated flashlight built into the unit for illumination inside dark control panels

• Power Supply: 2 × 1.5V AAA (LR03) batteries
